Projects from CSEE 4840 Embedded System Design
Spring 2013
Columbia University, Computer Engineering Program
Prof. Stephen A. Edwards


Don't miss videos of these projects on YouTube.

star My favorites


Raycasting Video Gamestar
pdfReport pdfPresentation ArchiveFiles
Edward Garcia, Alden Goldstein, Minyun Gu, Yiming Xu, and Wei-Hao Yuan

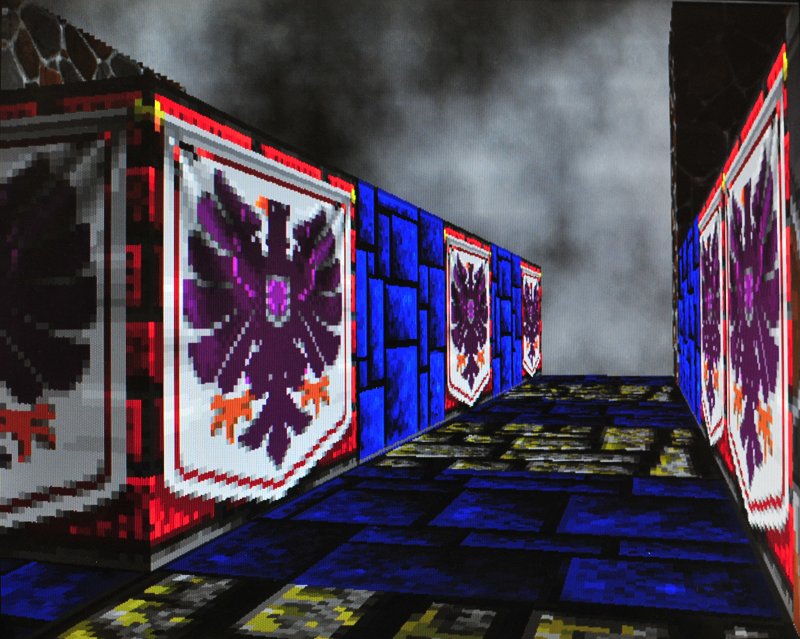

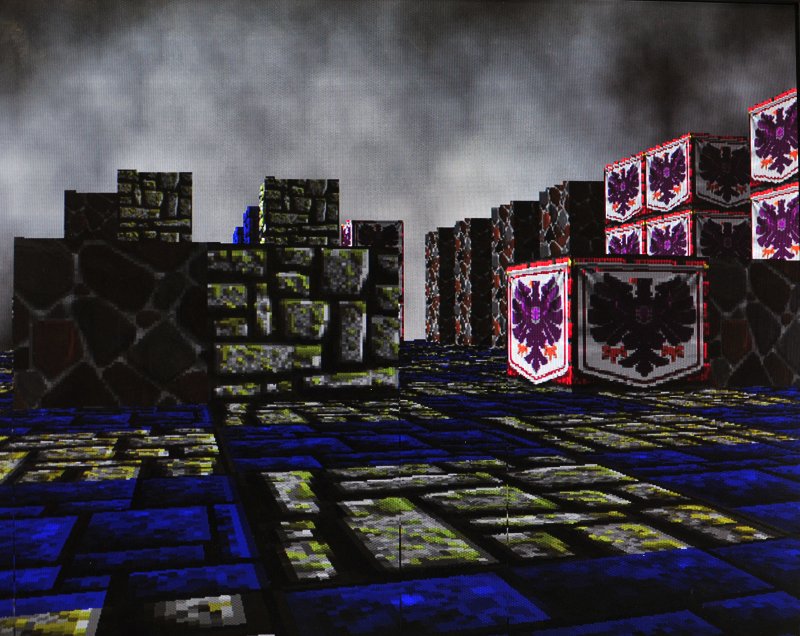

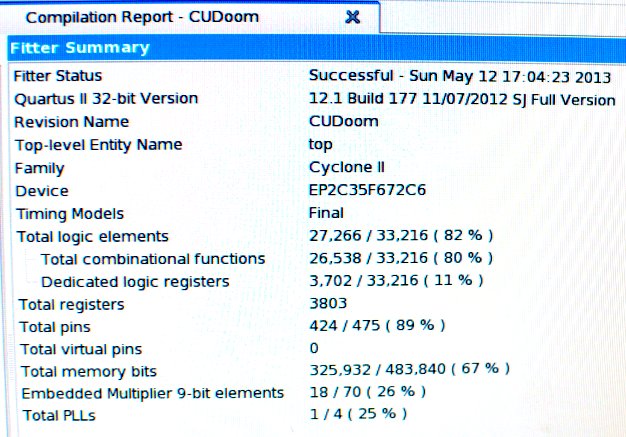

This hardware-accelerated real-time raycaster with texture mapping operates without a framebuffer: pixels are computed on-the-fly, giving remarkably smooth 60 fps motion. The 2.5D maze sports blocks of varying heights. This group really pushed the DE2/Cyclone II FPGA to its limits, using both on-chip RAM and off-chip SRAM, SDRAM, and Flash.


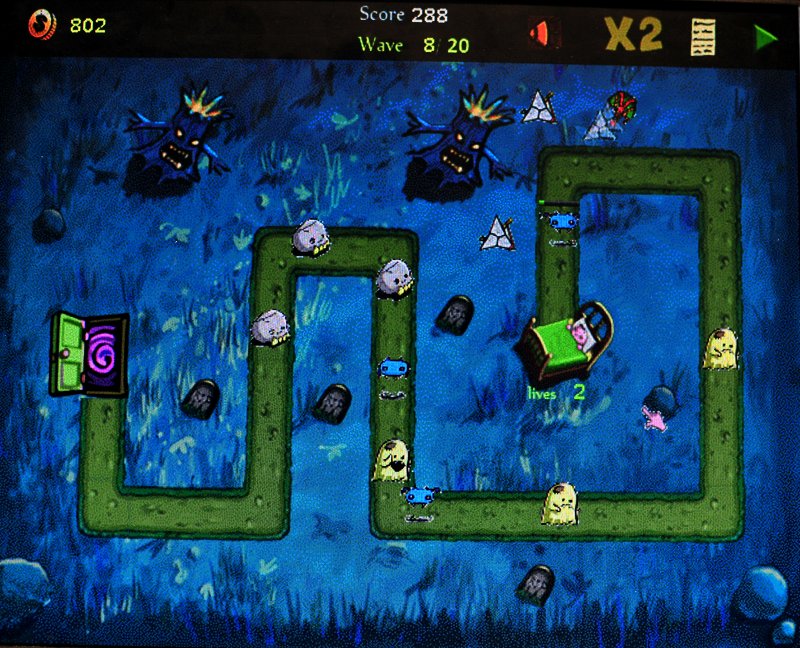

Save Edwards: A Tower Defense Video Gamestar
pdfReport pdfPresentation ArchiveFiles
Zhe Cao, Wei Wei, Zeyang Yang, and Ge Zhao

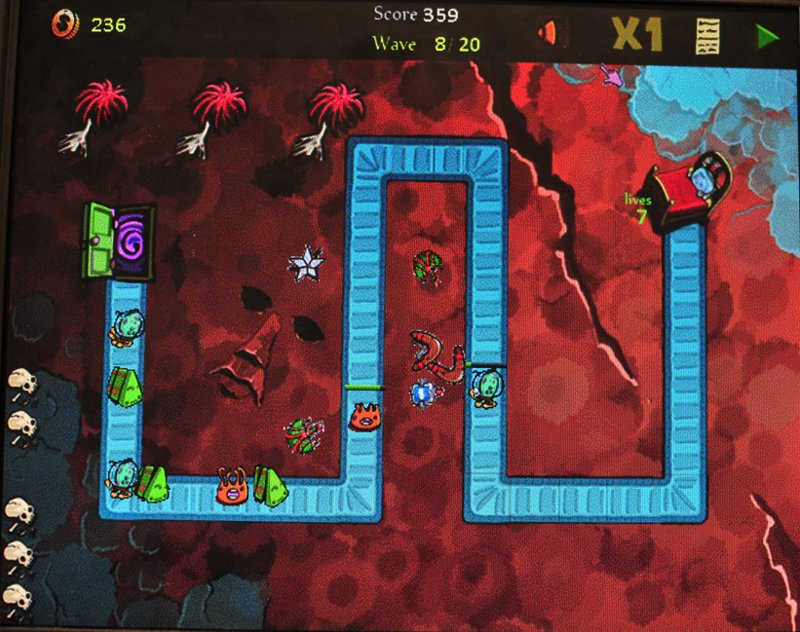

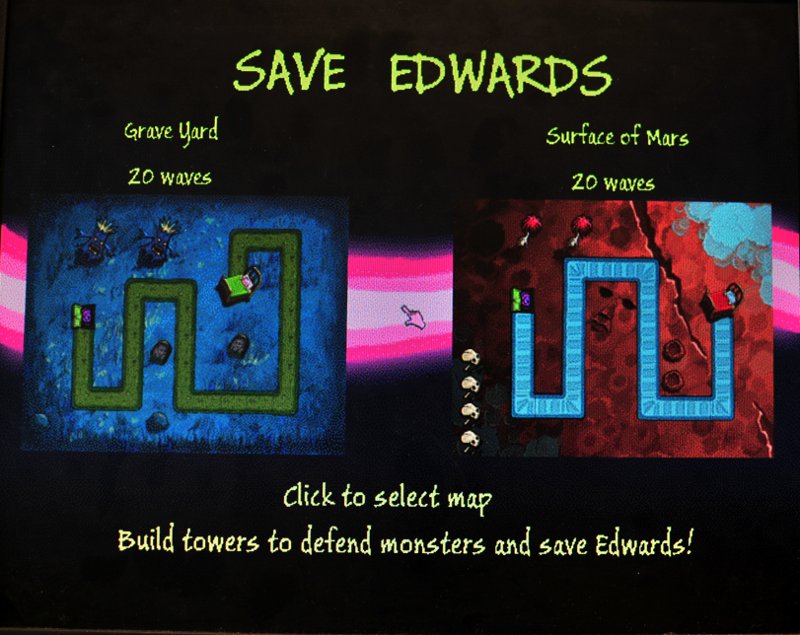

Keep away the monsters so Prof. Edwards can sleep: this tower-defense game features custom graphics hardware able to display 88 independent multicolor sprites over colorful backgrounds.


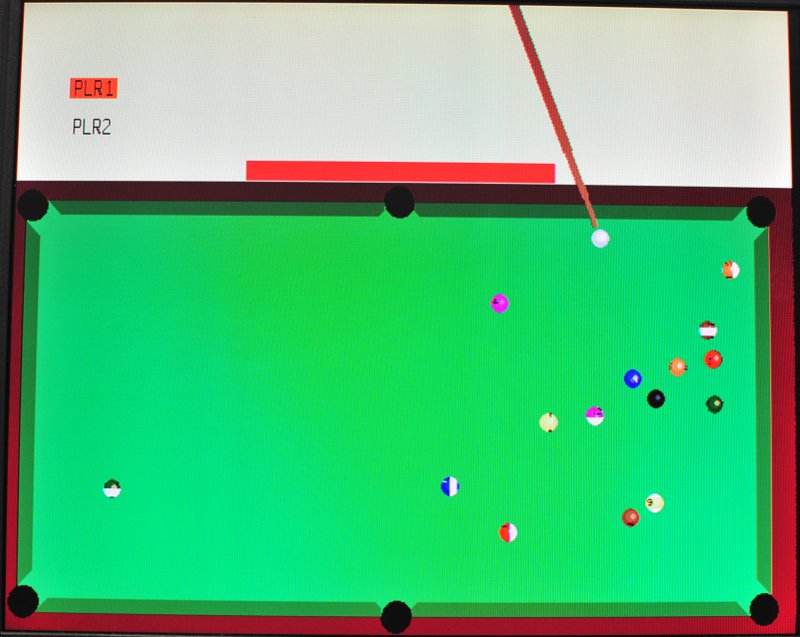

Networked American Pool Video Gamestar
pdfReport pdfPresentation ArchiveFiles
Yichen Liu, Zeshi Wang, Xunchi Wu, Jiawan Zhang, and Yuhan Zhang

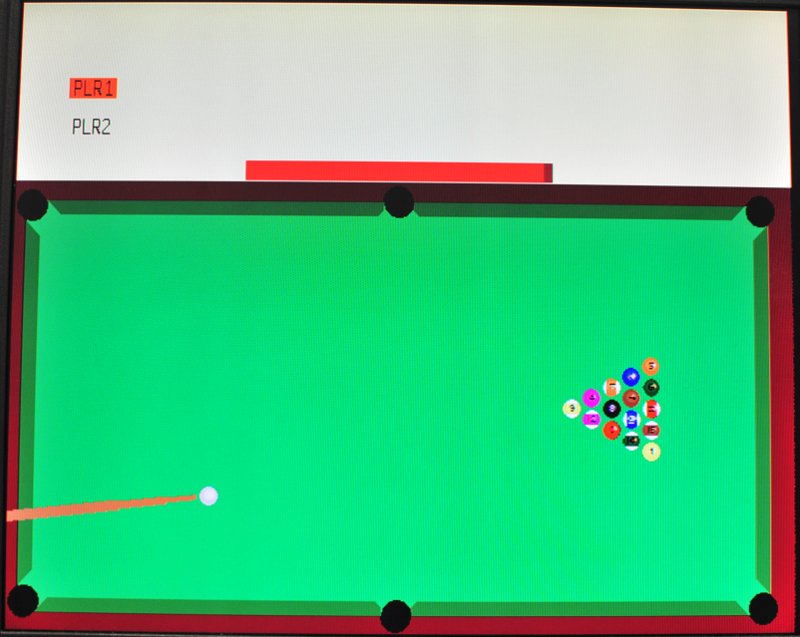

A very playable 8-ball pool simulator for two players complete with detailed physics, animated rolling balls, and authentic sounds.


Audio Playerstar
pdfReport pdfPresentation ArchiveFiles
Kavita Jain-Cocks, Zhehao Mao, Amrita Mazumdar, Darien Nurse, and Jonathan Yu

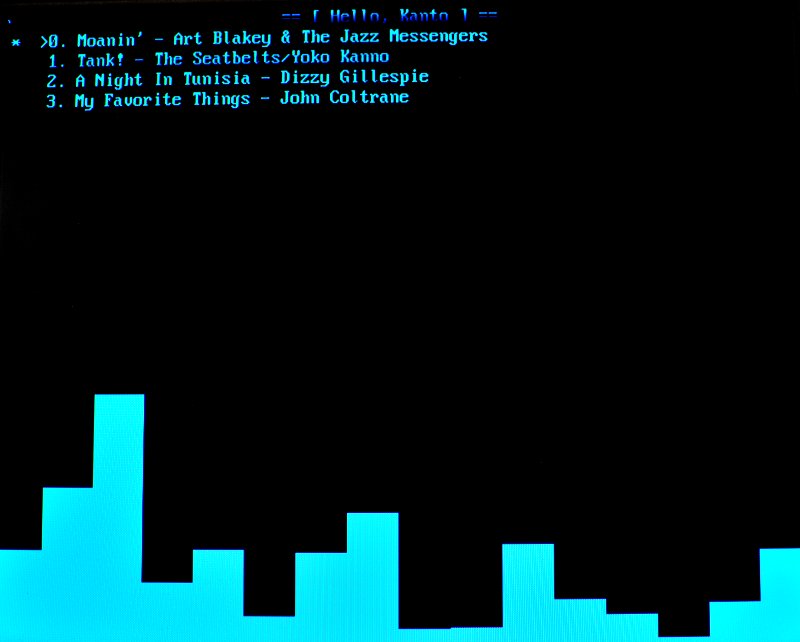

This music player reads a playlist of raw waveform files from an SD or SDHC card, plays songs with CD quality through the DE2's audio output, performs a real-time FFT, and displays the results on the monitor.


Rubik's Cube Solverstar
pdfReport pdfPresentation ArchiveFiles
Heather Fisher, Ifeoma Okereke, Zongheng Wang, and Yin-Chieh Wang

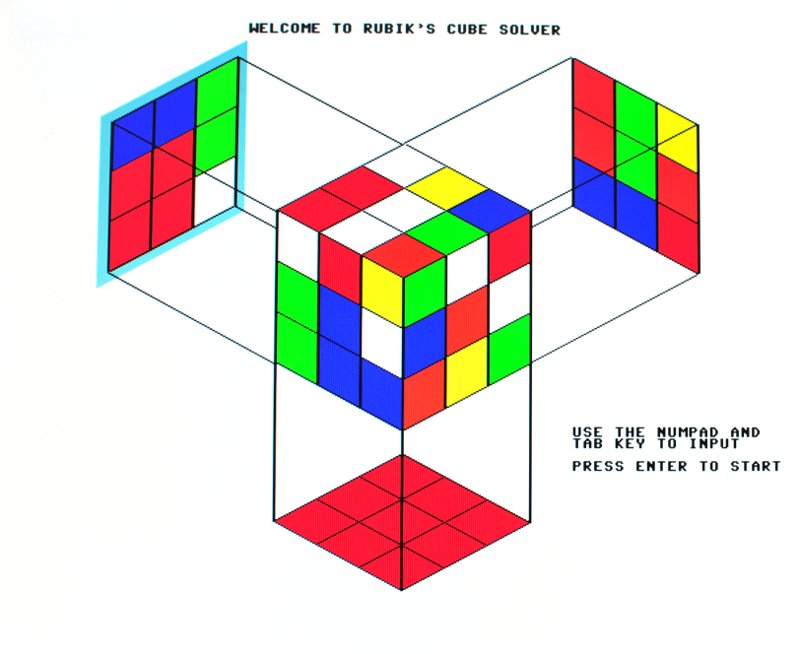

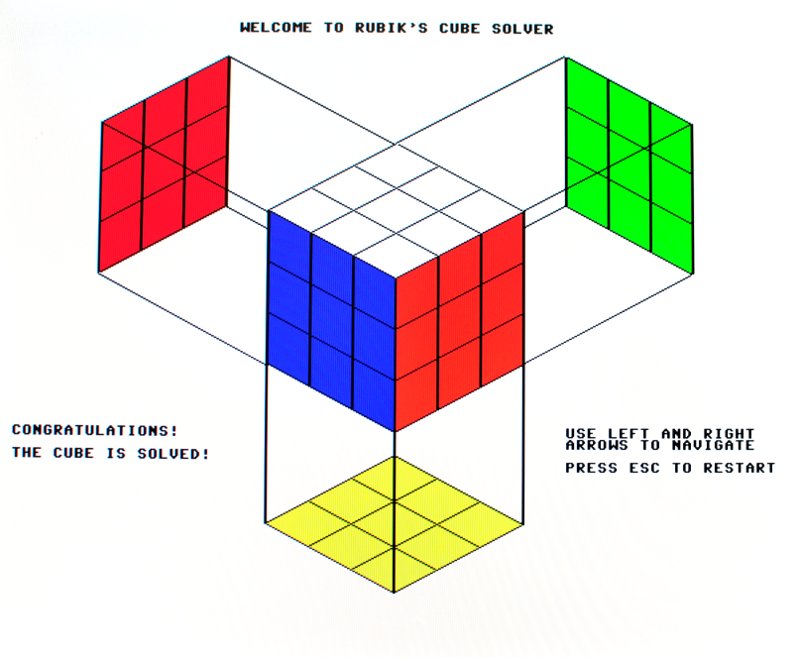

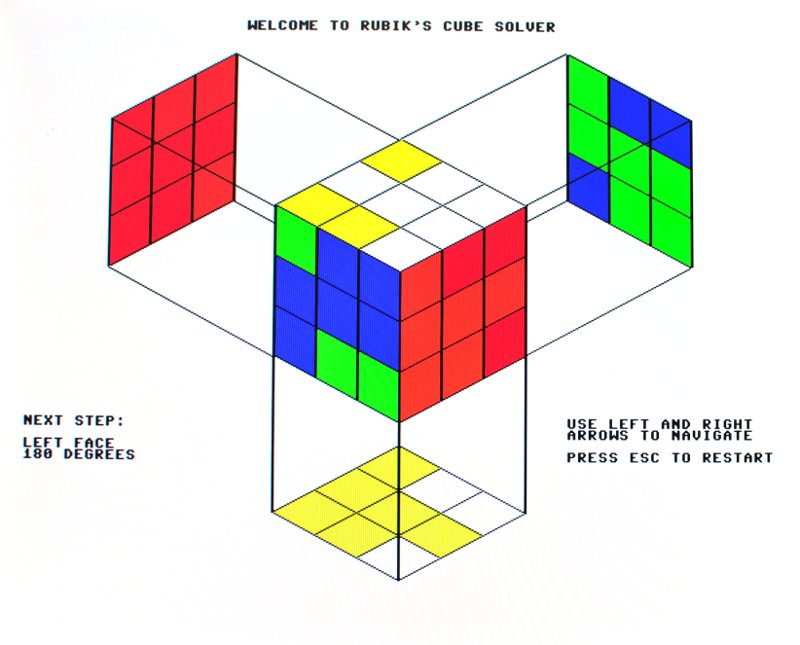

This accelerated Rubik's Cube solver implements Thistlethwaite's algorithm in a mix of hardware and software. A user to enters the configuration of an unsolved cube, the system solves it, then illustrates the solution step-by-step. The clever isometric display is done in hardware without a framebuffer.


Optical Mouse Scanner
pdfReport pdfPresentation ArchiveFiles
David Calhoun, Kishore Padmaraju, and Serge Yegiazarov

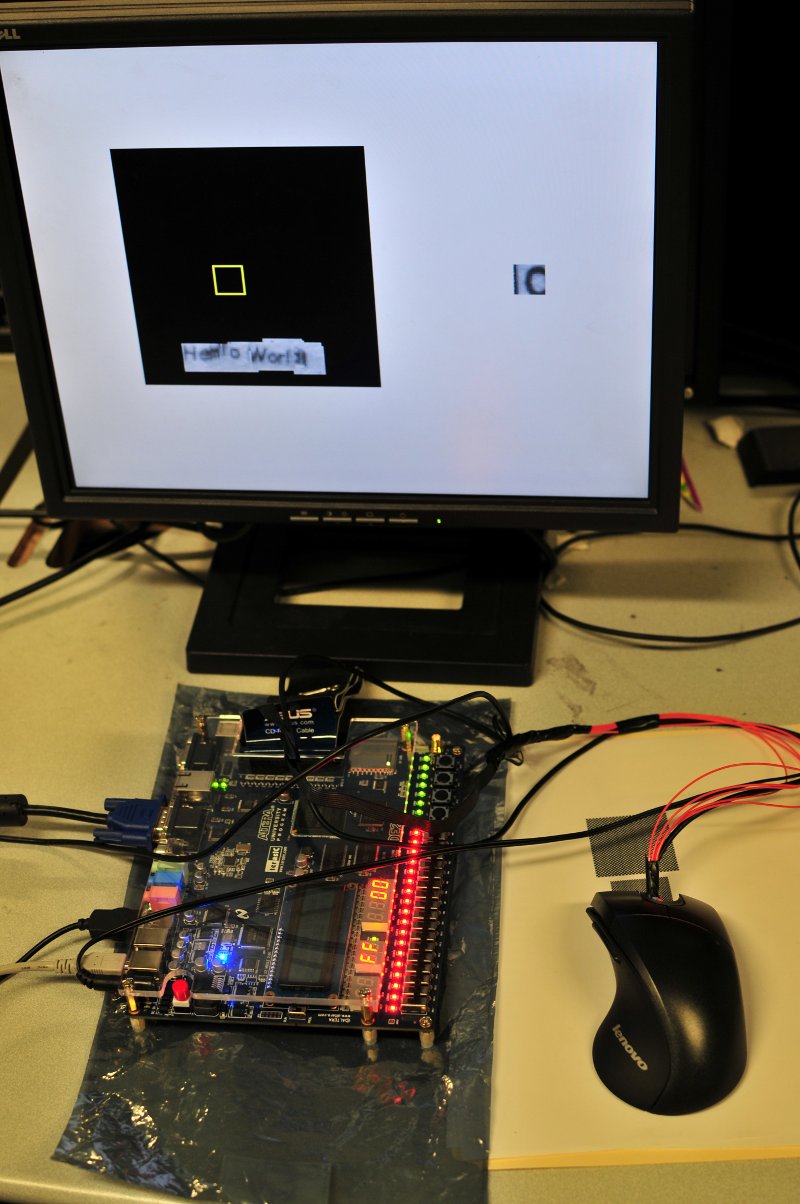

This group hacked into the optical processor in a mouse, feeding its 16 X 16 pixel data into a framebuffer according to observed motion, making it function like a handheld scanner. They were helped by a logic analyzer supplied by Saleae:


Pac-Man-like Video Game
pdfReport pdfPresentation ArchiveFiles
Youwei Hou, Yuedong Huang, and Yizhong Zhang

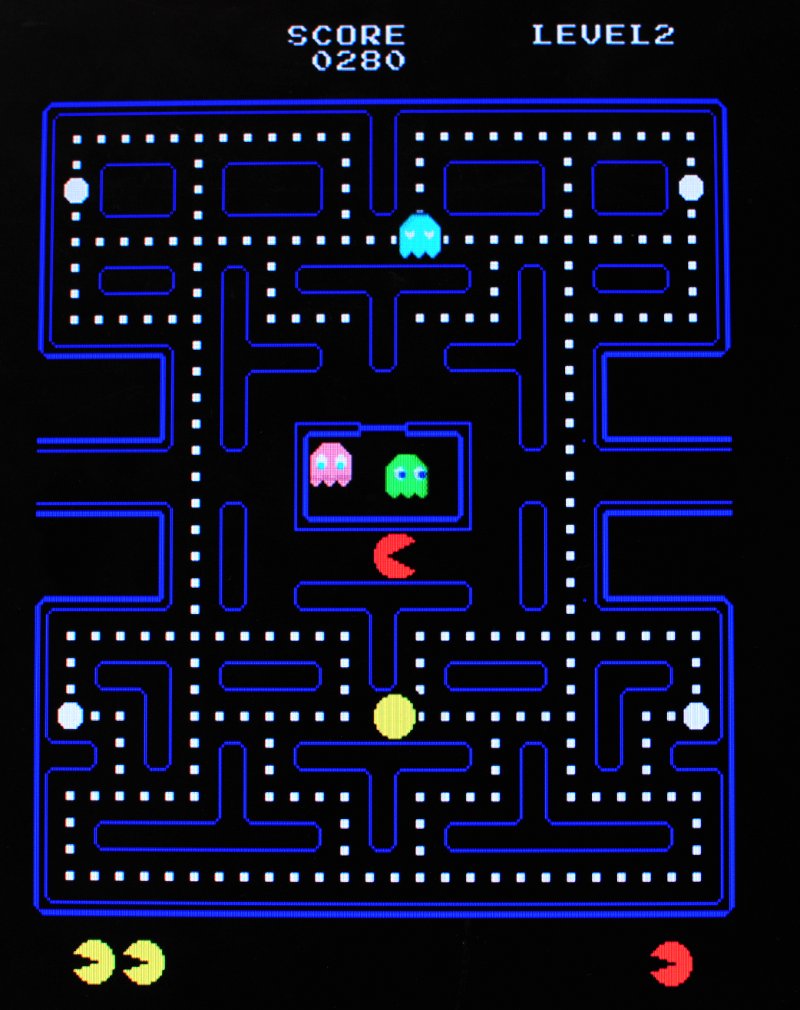

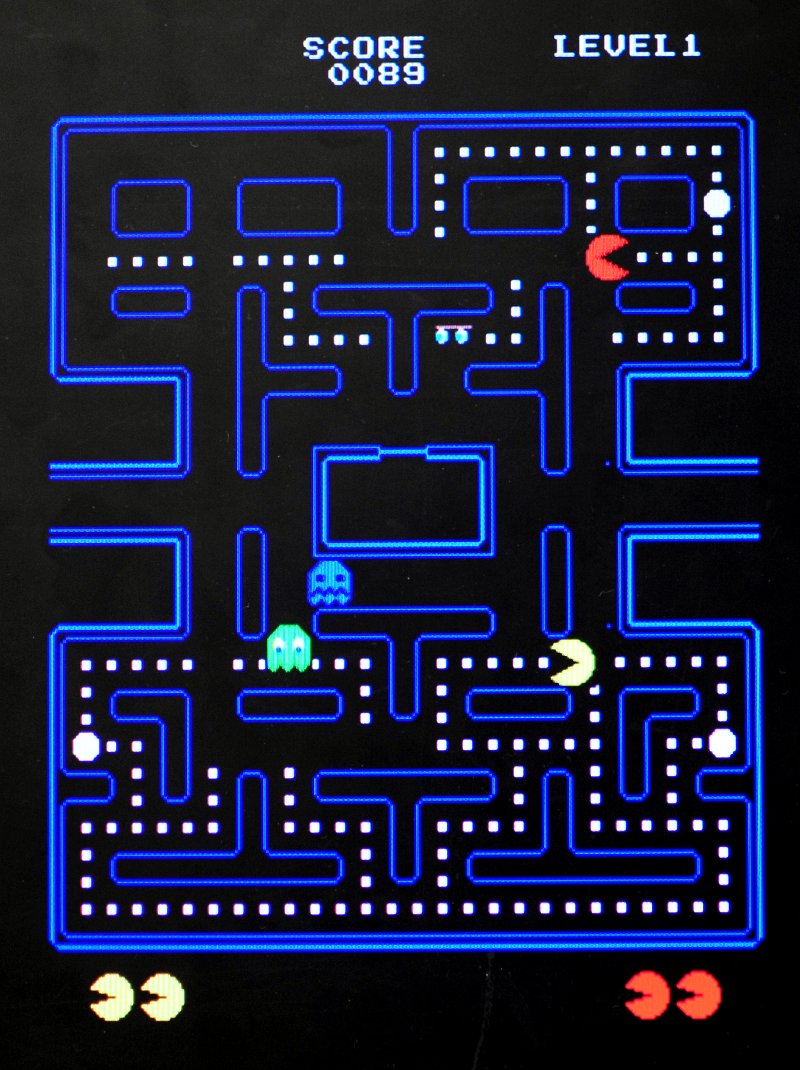

A two-player implementation Pac-Man that is very faithful to the 1982 original


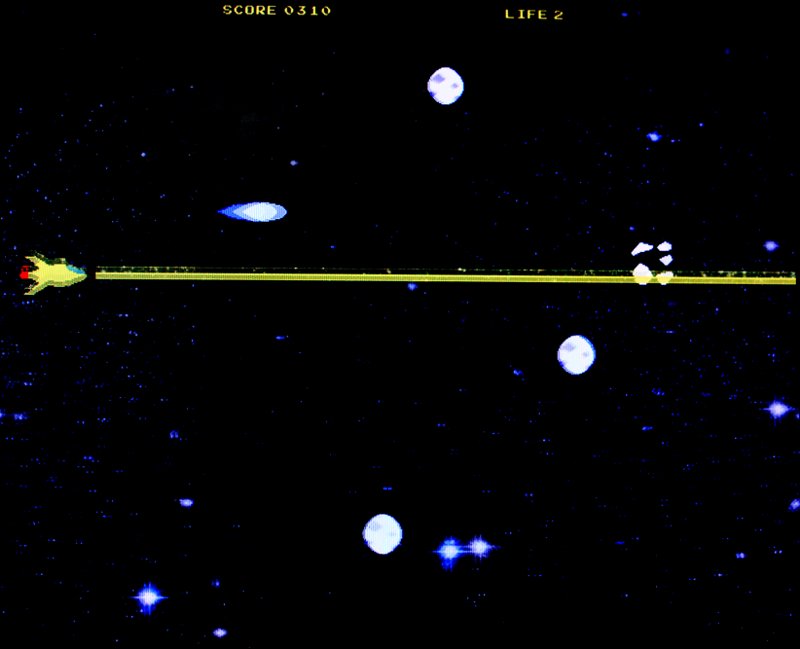

A Voice Activated Video Game
pdfReport ArchiveFiles
Shaobo He, Hao Hu, Kezhen Liu, Yi Su, and Sheng Zheng

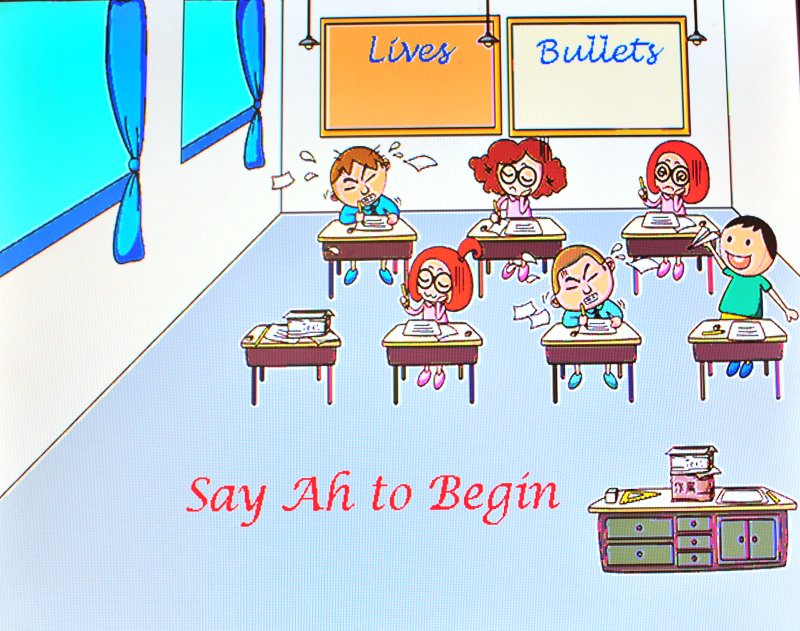

A voice-controlled videogame in which speaking moves you up, down, or fires at enemies. Uses a real-time FFT to distinguish changes in voice pitch. Implemented completely in VHDL.


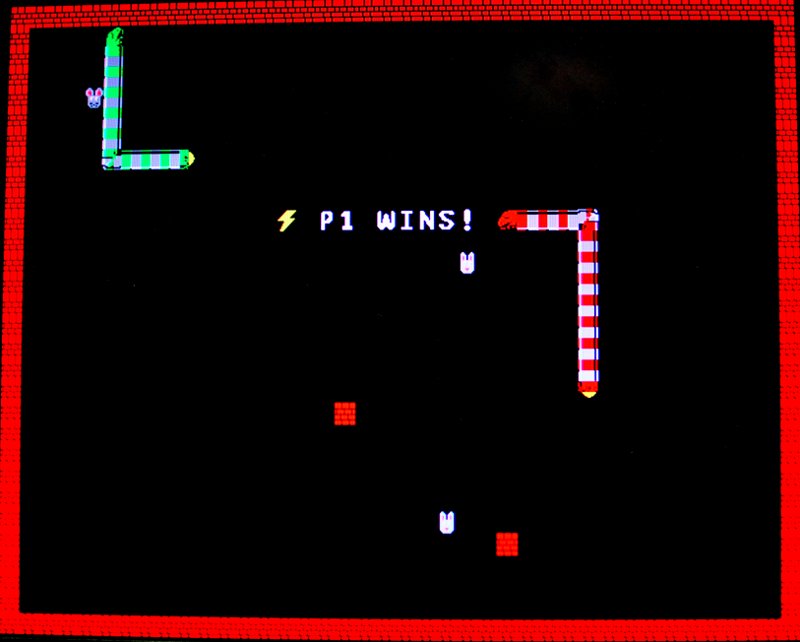

Snake Plus Video Game
pdfReport pdfPresentation ArchiveFiles
Nina Berg, Joseph Corbisiero, Ilan Elkobi, Molly Karcher, and Brian Wagner

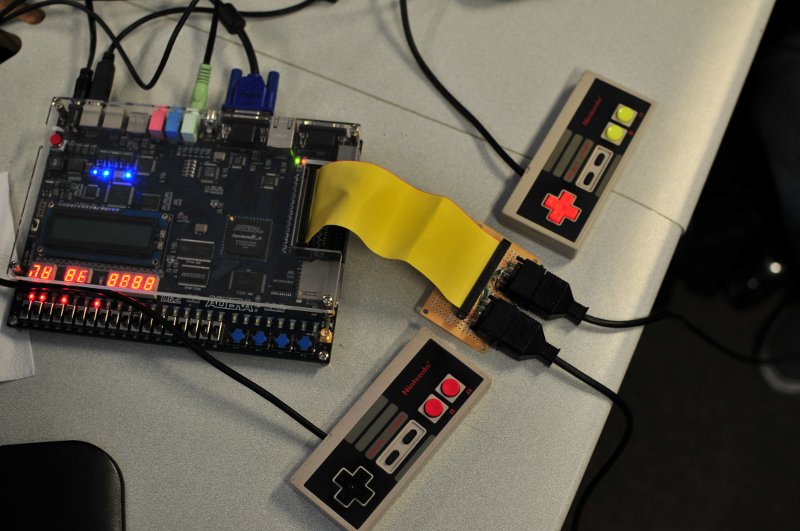

A Snake-chasing game with tile-based graphics controlled by two vintage NES controllers


6502 Core in VHDL
pdfReport pdfPresentation ArchiveFiles
Yu Chen, Jaebin Choi, Anthony Erlinger, and Arthy Sundaram

This is a largely complete implementation of a MOS 6502 from 1975 reimplemeted in RTL VHDL.


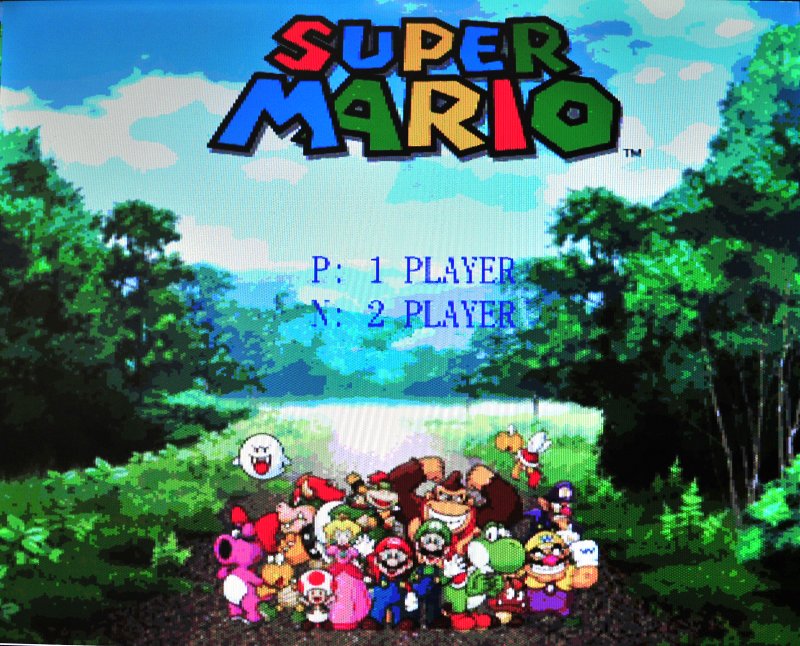

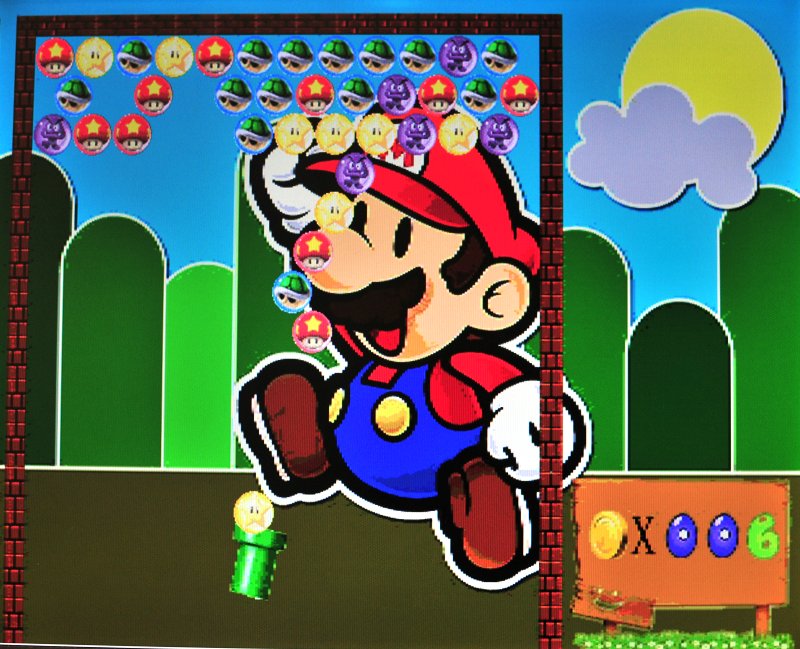

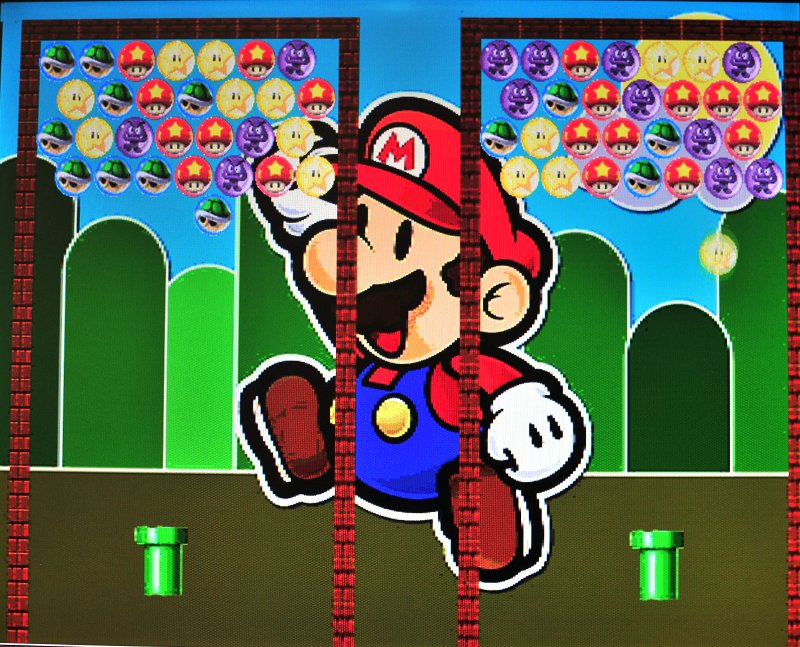

Shoot Bubble Video Game
pdfReport pdfPresentation ArchiveFiles
Weichia Chen, Jun Dai, Michael Shone, and Shuo-Shu Tsai

A Super Mario-themed bubble-shooting game with sprite graphics and background sound.


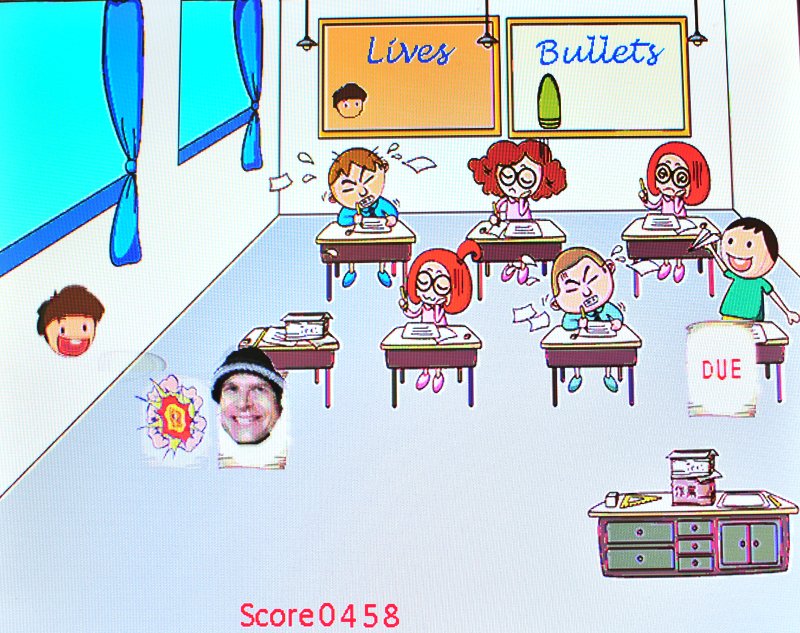

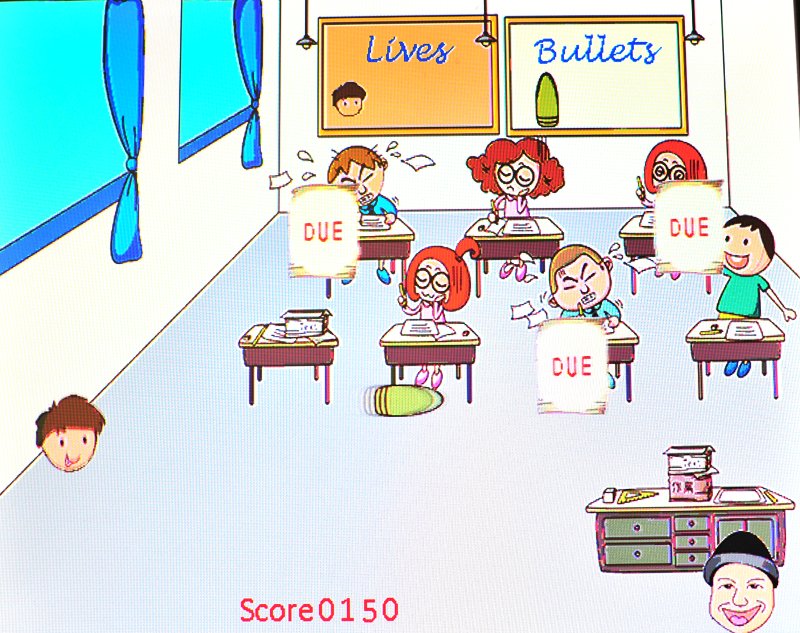

Voice-Controlled Video Game
pdfReport pdfPresentation ArchiveFiles
Xiaolong Jiang, Nan Li, Junlin Lu, Ji Pei, and Hongsen Yu

A voice-controlled videogame in which speaking moves you up or fires at enemies, including Prof. Edwards once he gets mad.


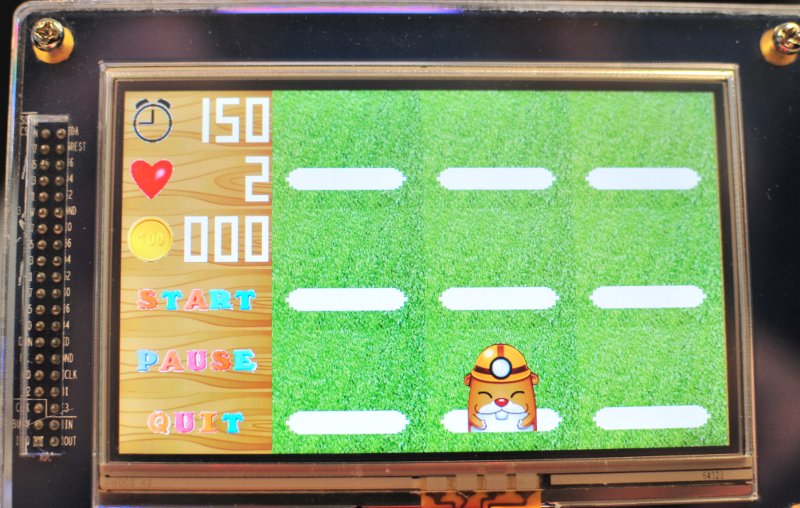

A Whac-a-Mole-like Game
pdfReport pdfPresentation ArchiveFiles
Jian Lu, Lingchuan Mei, Si Wang, and Shuting Yang

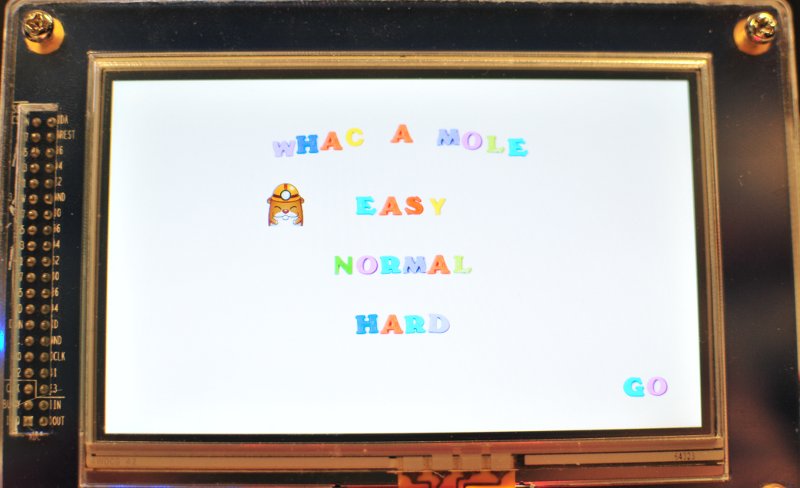

This Whack-a-Mole game operates with Terasic's 4.3" LCD touch panel, making it more a Touch-a-Mole game.


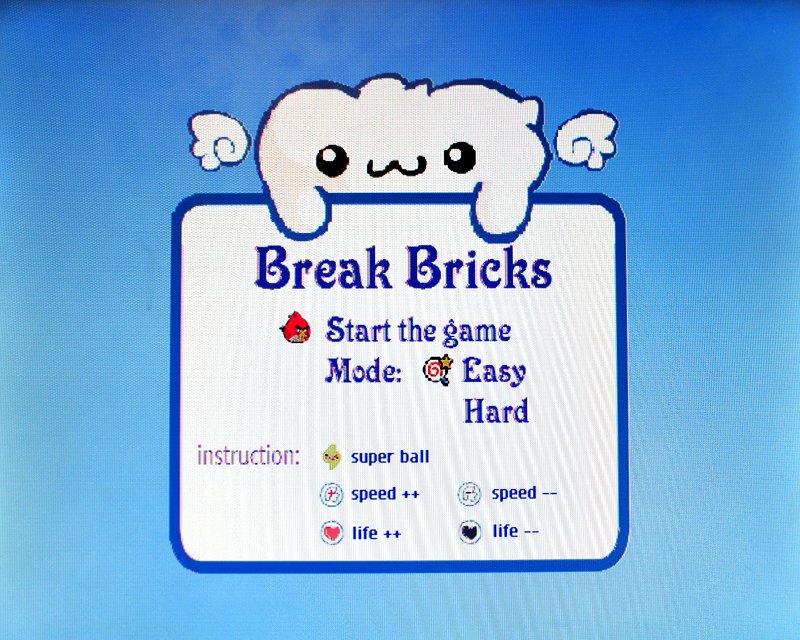

Break the Bricks Video Game
pdfReport pdfPresentation ArchiveFiles
Zimeng Chen, Chong Li, Lianhao Qu, Bin Xie, and Yuanhan Yang

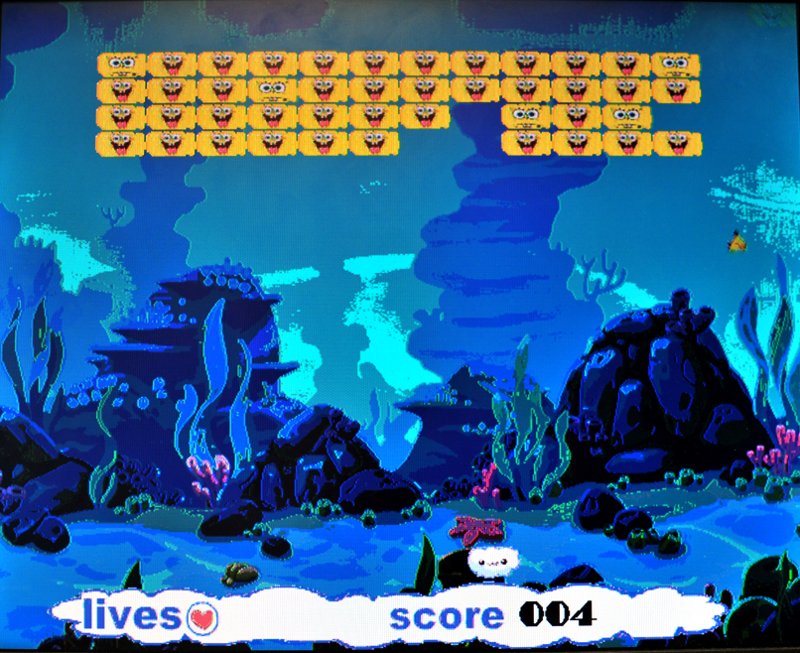

A Breakout clone using a rotary controller for input and sporting Spongebob and Angry Birds themes.


Fractal Landscape Generator
pdfReport pdfPresentation ArchiveFiles
Calvin Hu


Stock Market Data Processor on the SFA6900
pdfReport pdfPresentation
Artem Iakovlev, Naman Parashar, Miles Sherman, Pranav Sood, and Kevin Wong


Kill Switch: Hardware-Based Line-Rate Filtering and Capture of 10Gb/s Ethernet Network
pdfReport pdfPresentation ArchiveFiles
Bokai Chen, Qiushi Ding, Jingshu Fang, Yuyang Wang, and Liheng Wang

A basic, high-speed firewall capable of detecting "excessive" communication from a particular source and shutting it down.


Hardware Accelerated Decoding of FIX/FAST
pdfReport pdfPresentation
Danqing Hua, Chang Liu, Junkang Ren, and Raghavan Santhanam

High-speed parsing of the FIX-FAST finance communication protocol
