Gallery of Separation Results

Here, we show several examples of our separation results. In each case, we mention the separation method we have used. In all cases, the scene image is the sum of the computed direct and global images. However, to bring out the details, for some of the scenes we have brightened the direct and global images by a scale factor (between 1 and 2) with respect to the scene image. By clicking on each of the thumbnail images shown below, you can see the corresponding high resolution image. (Back to Main Project Page)

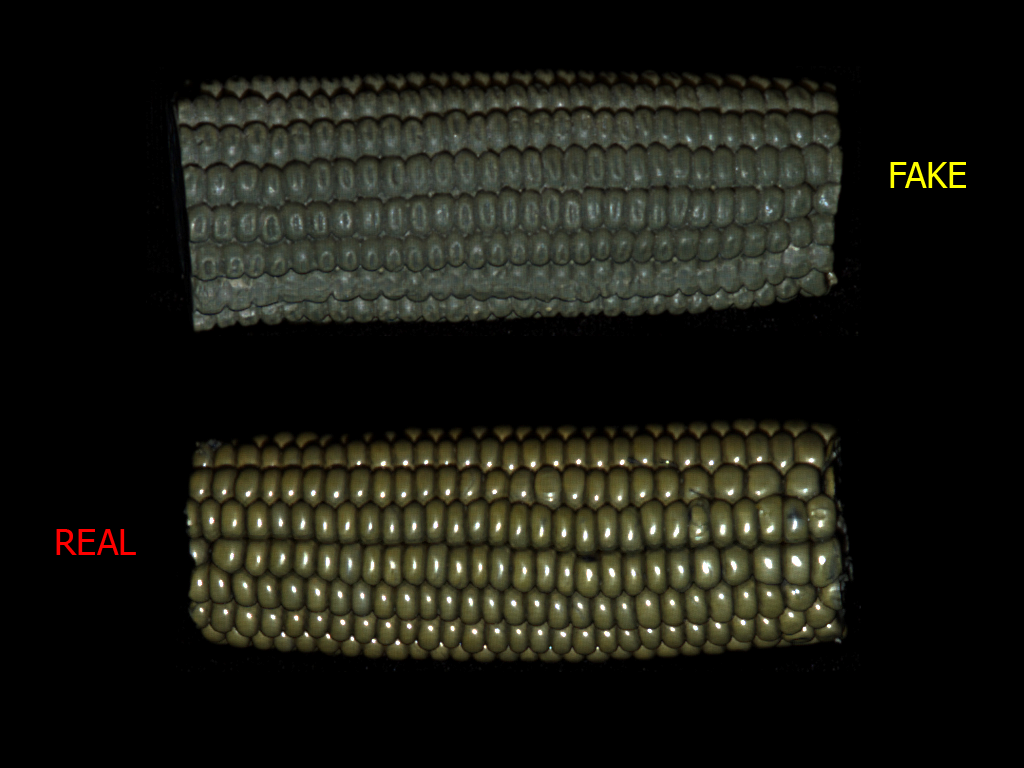

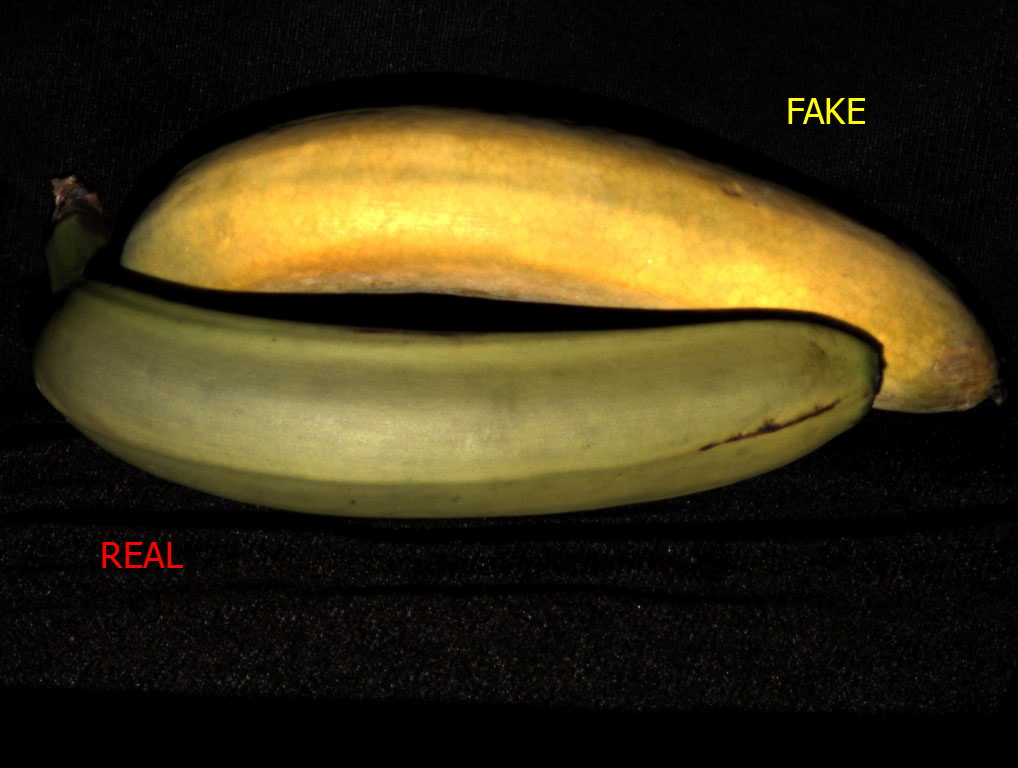

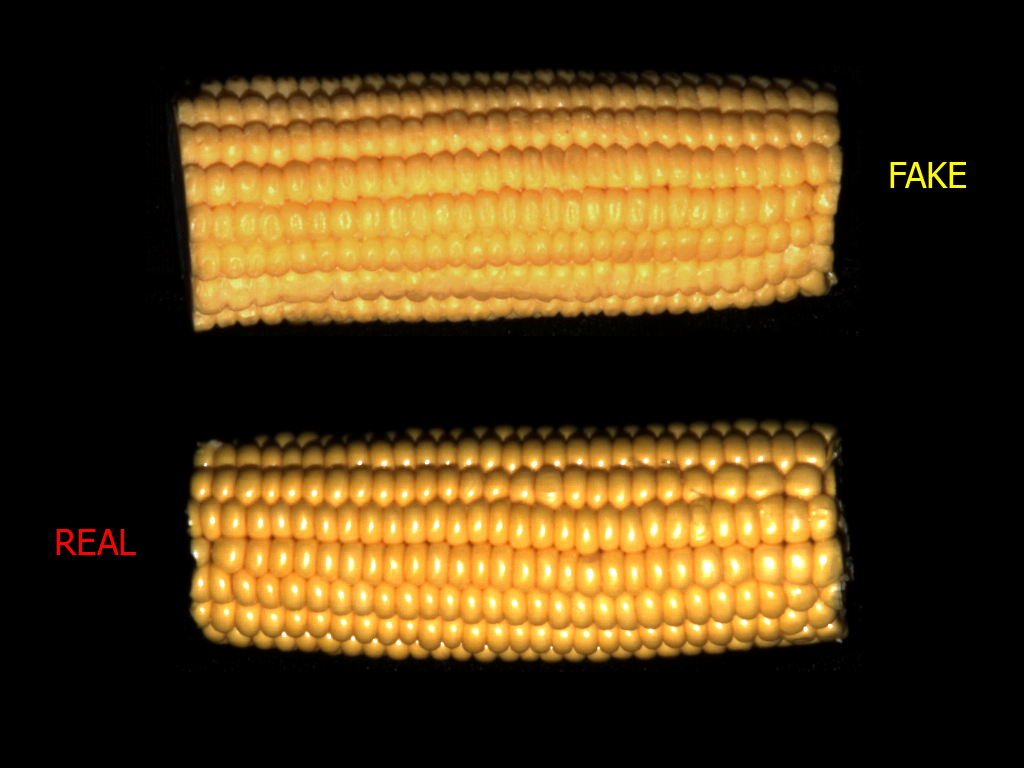

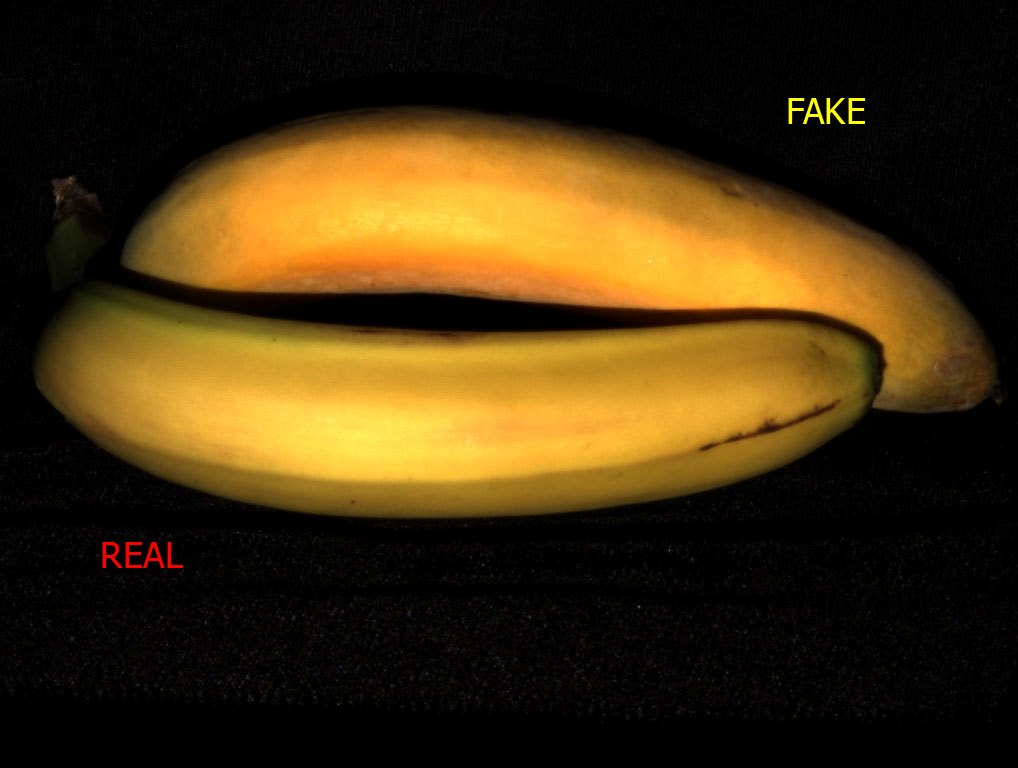

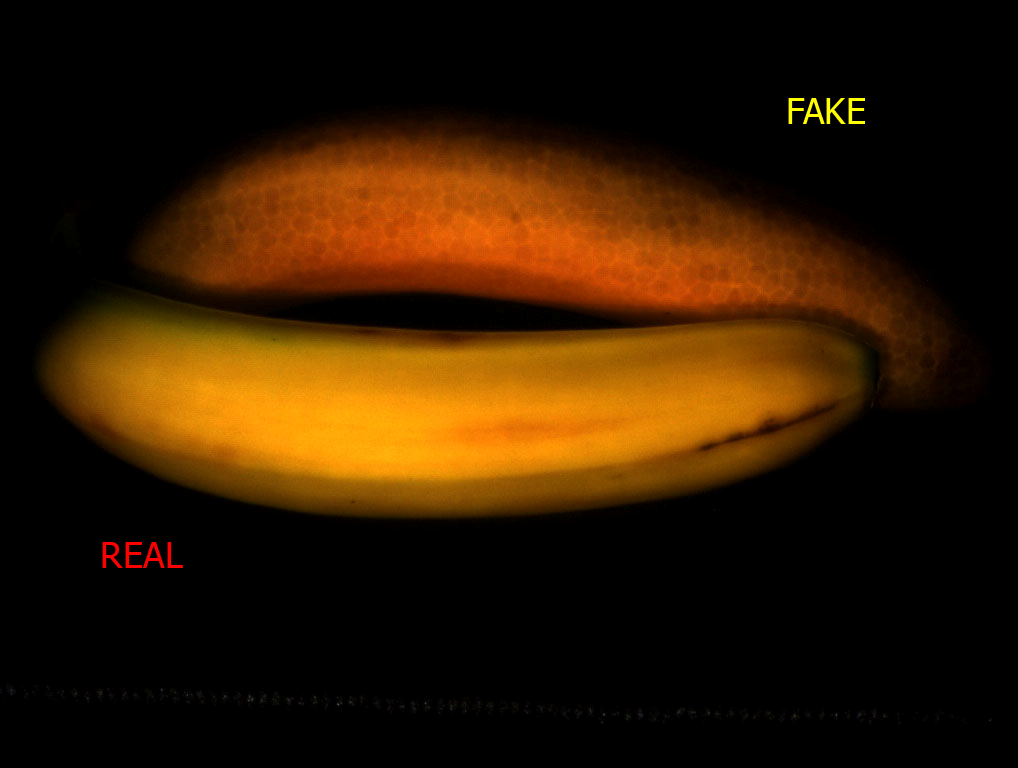

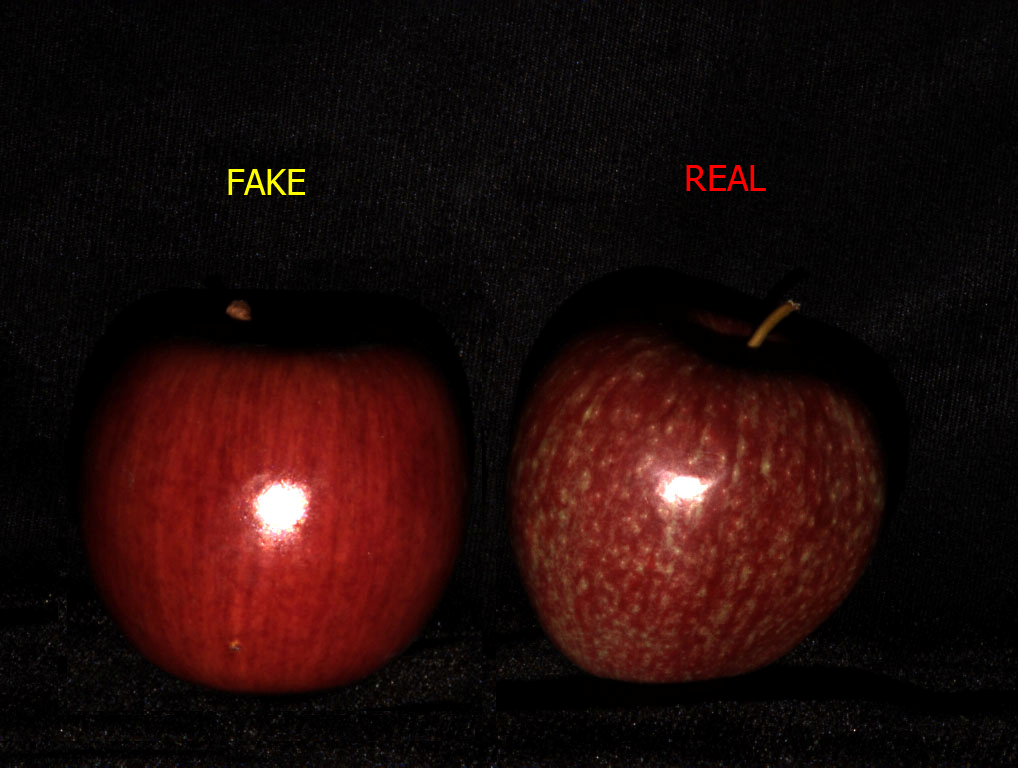

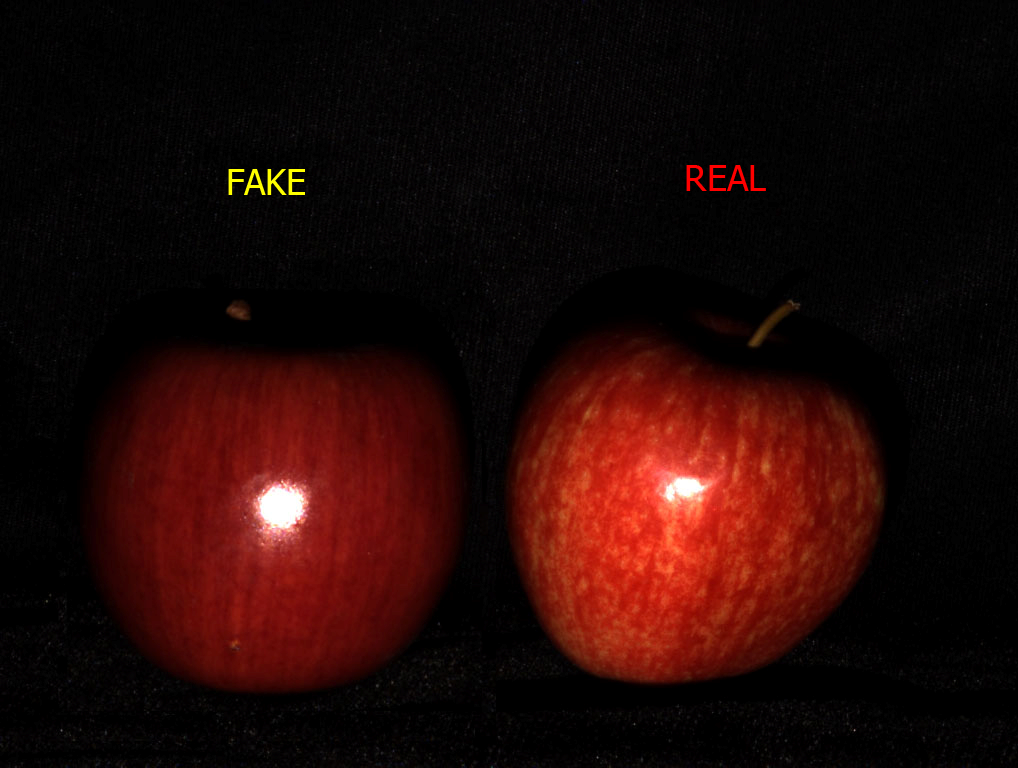

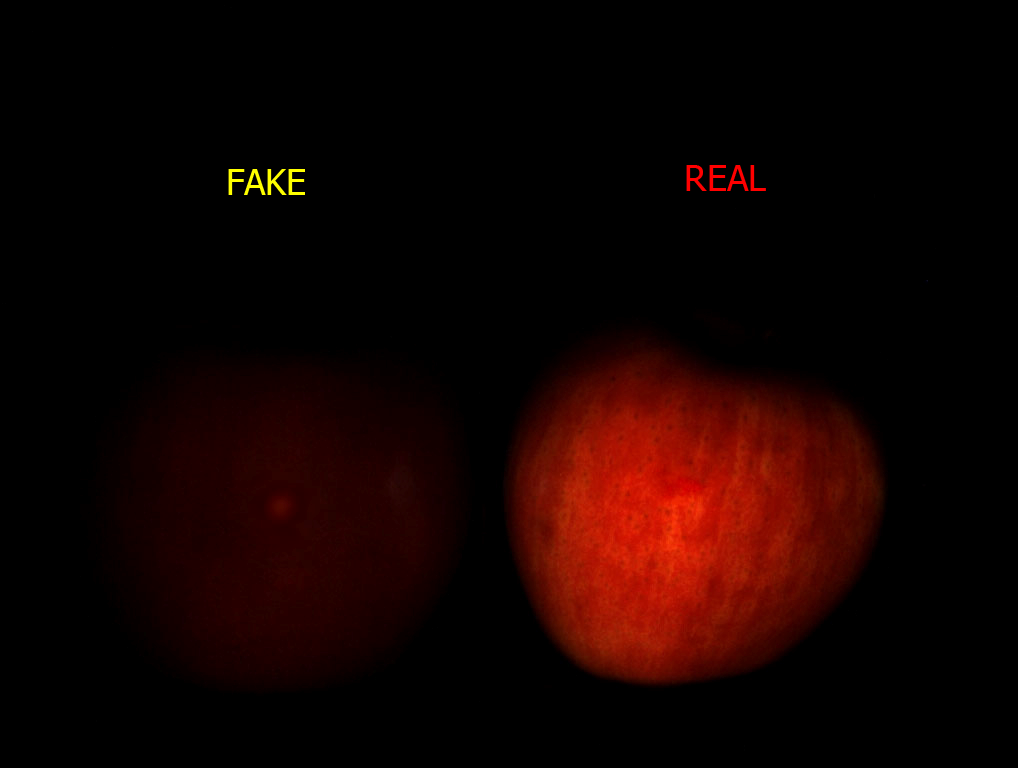

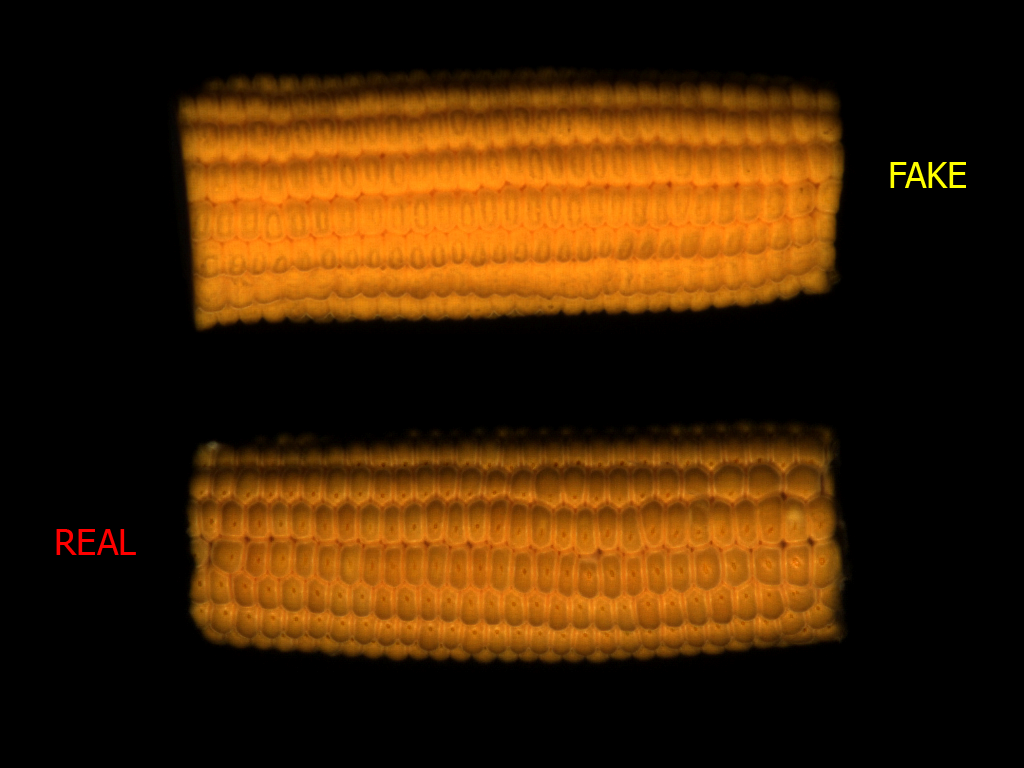

Real vs Fake Objects Method : Checkerboard   (a)     (b)     (c)   Scene Direct Global Separation results for real and fake objects - (a) Corn, (b) Apple and (c) Banana. Please click on the images to identify the real and fake objects. In all the cases there is a distinct difference between the real and fake object in the direct or the global image or both. For example, the fake corn appears stone-like when compared to the real one in the direct image, there is almost no subsurface scattering in the case of the fake apple and the foam structure of the fake banana is clearly evident in both the direct and global images.
