adelay - measure the delay between two audio channels

Synopsis

adelay [-hd] [-e PCMU|PCMA|L16] [-f samplerate] [-p period] [-s skip] [-t time] [-i in] [-o out]

Availability

Source is available at http://www.cs.columbia.edu/~hgs/adelay/src/

Currently, only Sun audio files and the Sun audio devices are supported.

Description

The adelay utility is an audio signal delay analyzer. It reads the data from the input device or a file, calculates correlation between the two channels using FFT, and reports the delay between them.

In correlation, we compare two sets of data directly superposed, and with one of them shifted left or right. The relation that holds when two functions, g(t) and h(t), are interchanged is:

Corr(g,h)(t) = Corr(h,g)(-t)

The discrete correlation of two sampled functions g_k and h_k, each periodic with period N, is defined by

Corr(g,h)[j] = Sum [k=0 to N-1](g[j+k] + h[k]) The discrete correlation theorem says that this discrete correlation of two real functions g and h is one member of the discrete Fourier transform pair Corr(g,h)[j] <==> G_kH_k*

We can compute correlation using an FFT as follows: compute the FFT for the two data sets, multiply one resulting transform by the complex conjugate of the other, and compute the inverse transform of the product. The result, say r, will formally be a complex vector of length N with all its imaginary parts zero since the original data sets were both real. The components of r are the values of the correlation at different lags.

When the delay is more then half of the length of the collected sample, the results tend to vary. Normally, more than half of them are correct. Most incorrect results fluctuate near 0 (no delay) as the two set of data are considered unrelated. Specify larger sampling time if results jump between a long delay and 0.

Options

-h	Print a short description of the usage.
-d	Print out decoded data in addition to the correlation when -o is specified.
-e PCMU|PCMA|L16	Specify the encoding of the audio input. Currently, delay supports PCMU (U-law), PCMA (A-law) and L16 (Linear 16-bit signed). The default encoding is L16. This option has no effect when reading from file because the file header provides encoding information.
-f samplerate	Sampling frequency in Hz. The default is 8000 Hz. This option has no effect when reading from file because the file header provides frequency information.
-p period	Period for checking delay. When reading data from audio input device, the program can check the delay periodically. The default is 60 sec. Use 0 or less to suppress looping (run only once). This option has no effect when reading from file because the program is only run once in that case.
-s skip	Skip first seconds of data when reading from file. The default is 0. This option has no effect when reading from audio input device.
-t time	Sampling time in seconds. The default is 2 seconds. The FFT library requires the size of the data set to be power of 2. Therefore, the delay program automatically reads in data of length that is power of 2 and just above the specified length. If the delay is larger than the half of the sampling length, the results tend to vary. Normally, more than half of them are correct. Most incorrect results fluctuate near 0 (no delay) as the two set of data are considered unrelated. Specify larger sampling time if results jump between long time and 0.
-i in	Read from the given audio file. The file must be a Sun audio (.au) file. By default, the program reads from audio input device. Reading from the audio device is currently only supported for Sun systems.
-o out	Output the delay correlation pairs to file out. Use "-" for stdout. By default, this program does not output this data. This option has no effect if this program loops for checking delay from audio input device.

Output

This program simply print out the delay between the two channels.

When the -o option is specified, the output has following format:

Lag (msec)      Correlation
-1024.000000    -1.408000e+03
-1023.875000    -2.560000e+02
-1023.750000    1.220000e+02

If, in addition to the -o option, the -d option is also specified, the output is in following format:

Lag (msec)      Correlation     Left Channel    Right Channel
-1024.000000    -1.408000e+03   0.000000e+00    0.000000e+00
-1023.875000    -2.560000e+02   0.000000e+00    0.000000e+00
-1023.750000    1.220000e+02    0.000000e+00    0.000000e+00

Examples

Reads from a recorded audio file "data.au" and analyze delay:

  delay -i data.au

Reads from a recorded audio file "data.au", analyzes delay, and print out the correlation to file "result":

  delay -i data.au -o result

Reads from a recorded audio file "data.au", analyzes delay, print out the correlation along with decoded data to standard output, and observe them with pager:

  delay -d -i data.au -o - | more

Reads from the audio input device with all default values:

  delay

Reads from the audio input device, calculates only once:

  delay -p 0

Reads from the audio input device with U-law encoding:

  delay -e PCMU

Exit Status

The following exit values are returned:

0	The program terminated successfully.
>0	An error occurred.

Notes

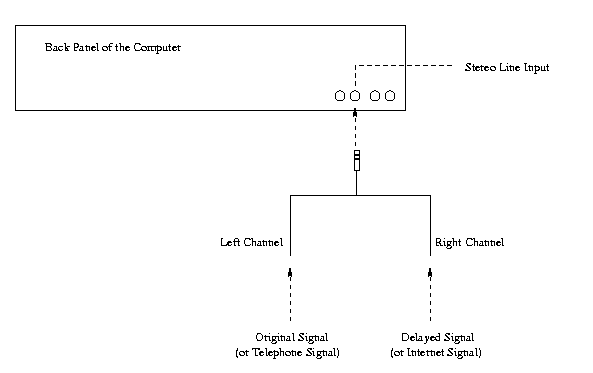

This program can be used to measure one-way internet delay. Split one audio signal into two channels, one transmitted by telephone network and the other by internet. The receiver connect these channels to the audio input of the computer, the first channel to the left and the second to the right. The result from the program is then the one-way internet delay compared to the telephone switch network transmission.
