was created to serve as a tool for grasping research. It is a
simulator that can accommodate arbitrary hand and robot designs. It
can also load objects and obstacles of arbitrary geometry to populate
a complete simulation world. The GraspIt!
engine includes a rapid
collision detection and contact determination system that allows a
user to interactively manipulate a robot or an object and create
contacts between them. Once a grasp is created, one of the key
features of the simulator is the set of grasp quality metrics. Each
grasp is evaluated with numeric quality measures, and visualization
methods allow the user to see the weak point of the grasp and create
arbitrary 3D projections of the 6D grasp wrench space.
For complete details about GraspIt! features, installation instructions, getting started, etc. please see the GraspIt! User Manual.
GraspIt! is available
under the GNU General
Version: The currently available version is 2.2.0 (released in April 2012).
Platform: GraspIt! is cross-platform, and the current release has been tested on MS Windows and Ubuntu Linux.
Download: The most recent version of GraspIt! can be downloaded from http://graspit.sourceforge.net/. For installation and compilation instructions, see the User Manual linked above.
||Automatic grasp planning is a difficult problem
because of the huge number of possible hand configurations. Humans
simplify the problem by choosing an appropriate prehensile posture
appropriate for the object and task to be performed. By modeling an
object as a set of shape primitives (spheres, cylinders, cones and
boxes) we can use a set of rules to generate a set of grasp starting
positions and pregrasp shapes that can then be tested on the object
model. Each grasp is tested and evaluated, and the best grasps are
presented to the user.

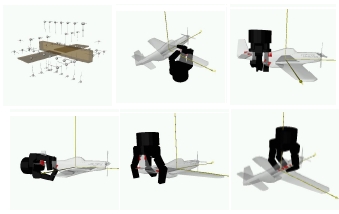

Image: the primitive model used for the toy airplane with the generated set of grasps to be tested, and five of the best grasps found sorted in quality order.
||During each time step the system
solves for the motion of each body. The constraints are formulated as a
linear complementarity problem which can be solved with Lemke’s
algorithm. Smooth joint trajectories can be created and PD joint
controllers apply the necessary torques to carry out a grasp.
Image: snapshots during the dynamic simulation of a grasp formation, with the Barrett hand picking up a telephone.
|For an introduction to
GraspIt!, the most complete overview of its core features is in:
* Andrew Miller and Peter K. Allen. "Graspit!: A Versatile Simulator for Robotic Grasping". IEEE Robotics and Automation Magazine, V. 11, No.4, Dec. 2004, pp. 110-122. [pdf].
We recommend starting with that paper for the best introduction to the system. Most of the papers below address individual features of the simulator, you can read those that are relevant to the particular project you are working on. The list of publication is presented in chronological order, from oldest to newest. For each publication, we also provide a short description of the parts of GraspIt! that it is most relevant for.
* Andrew T. Miller and Peter K. Allen. "Examples of 3D Grasp Quality Computations". In Proceedings IEEE International Conference on Robotics and Automation, Detroit, MI, pp. 1240-1246, May 1999. [pdf]
Introductory theory on the grasp quality metrics used by GraspIt!. Discussed topics such as the Grasp Wrench Space, L1 and LInf norms, epsilon and volume quality metrics, etc.
* Danica Kragic, Andrew T. Miller, Peter K. Allen. "Real-time tracking meets online grasp planning". In Proceedings IEEE International Conference on Robotics and Automation, Seoul, Republic of Korea, pp. 2460-2465, May 2001. [pdf]
Application of GraspIt! to execute a grasping task with a real robot. A real-life object is tracked using a camera, its position is replicated in GraspIt! where a grasp is planned using a virtual Barrett hand. The grasp is then executed using a real Barrett hand.
* Andrew T. Miller, Steffen Knoop, Peter K. Allen, Henrik I. Christensen. "Automatic Grasp Planning Using Shape Primitives," In Proceedings of the IEEE International Conference on Robotics and Automation, pp. 1824-1829, September 2003. [pdf]
Detailed discussion of the Primitive-based grasp planner.
* Andrew T. Miller, Henrik I. Christensen. "Implementation of Multi-rigid-body Dynamics within a Robotic Grasping Simulator" In Proceedings of the IEEE International Conference on Robotics and Automation, pp. 2262 - 2268, September 2003. [pdf]
Presents the theoretical framework between the dynamics engine in GraspIt!. Covers topics such as time step integration, formulation of contact and joint constraints as Linear Complementarity constraints, etc. Shows how the full Linear Complementarity problem is assembled and solved at each time step of the dynamic engine. A must-read for understanding GraspIt! dynamics.
* Rafael Pelossof, Andrew Miller, Peter Allen and Tony Jebara. "An SVM Learning Approach to Robotic Grasping". In IEEE Int. Conf. on Robotics and Automation, New Orleans, April 29, 2004, pp. 3512-3518. [pdf]
Proposed the use of GraspIt! to generate large amounts labeled grasping data that can be used to apply machine learning algorithms. This code is not included in the current GraspIt! distribution.
* Matei Ciocarlie, Claire Lackner and Peter Allen. "Soft finger model with adaptive contact geometry for grasping and manipulation tasks". In IEEE Symposium on Haptic Interfaces for Virtual Environment and Teleoperator Systems, Tsukuba, JP, March 19-21, 2007. [pdf]
Discusses the Soft Finger contact as implemented in GraspIt!, covering the analytical surface approximation, soft finger grasp wrench space and formulation as linear complementarity constraints.
* Corey Goldfeder, Peter K. Allen, Claire Lackner, Raphael Pelossof. "Grasp Planning via Decomposition Trees". In IEEE Int. Conference on Robotics and Automation, April 13, 2007, Rome. [pdf]
Proposes an automatic method of decomposing an object into primitives (superquadrics) to fully automate the task of primitive-based grasp planning. This code is not included in the current GraspIt! distribution.
* Matei Ciocarlie, Corey Goldfeder and Peter Allen. "Dimensionality reduction for hand-independent dexterous robotic grasping". In IEEE / RSJ Conference on Intelligent Robots and Systems (IROS) 2007, San Diego, Oct. 29 - Nov. 2 [pdf]
Introduces the eigengrasp concept and grasp planning in eigengrasp space as an optimization problem solved through Simulated Annealing. This is the recommended starting point if you are interested in
* Matei T. Ciocarlie and Peter K. Allen. "On-Line Interactive Dexterous Grasping". In Eurohaptics 2008, Madrid, June 10-13, 2008. [pdf]
Present an application of eigengrasp planning for on-line interaction with a human user. This is the theory behind the OnLinePlanner class included in the distribution.
* Corey Goldfeder, Matei Ciocarlie, Hao Dang and Peter K. Allen. "The Columbia Grasp Database". In IEEE Int. Conf. on Robotics and Automation 2009, Kobe. [pdf]
Shows how GraspIt! can be used to generate a huge database of labeled grasp data, and how this database can be used for data-driven grasp planning algorithms. The database is publicly available. We are currently working on releasing all the interface code that you need for using both GraspIt! and the Columbia Grasp Database together. We hope that this feature will be available in the summer of 2009 at latest.
