Removing Image Artifacts Due to Dirty Camera Lenses
and Thin Occluders |
 | |
A common assumption in computer graphics, as well as in digital photography
and imaging systems, is that the radiance emitted from a scene point is
observed directly at the sensor. However, there are often physical
layers or media lying between the scene and the imaging system. For
example, the lenses of consumer digital cameras, or the front windows of
security cameras, often accumulate various types of contaminants over
time (e.g., fingerprints, dust, dirt). Also, photographs are often taken
through a layer of thin
occluders (e.g., fences, meshes, window shutters, curtains, tree
branches) which partially obstruct the scene. Both artifacts are annoying
for photographers, and may also damage important scene information
for applications in computer vision or digital forensics.
While a simple solution is to clean the camera lens, or choose a
better spot to retake pictures, this is impossible for
existing images and impractical for some applications like outdoor security
cameras, underwater cameras or covert surveillance behind a fence.

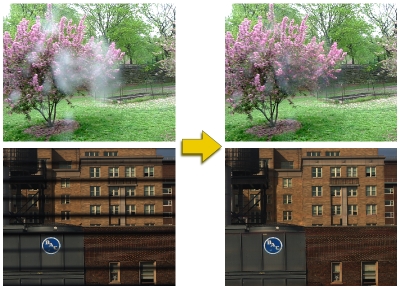

Therefore, in this project, we develop new ways to take the pictures, and new
computational algorithms to remove dirty-lens and thin-occluder
artifacts. Unlike image inpainting and hole-filling methods, our
algorithms rely on an understanding of the physics of image formation to
directly recover the image information in a pointwise fashion, given
that each point is partially visible in at least one of the captured
images.
We show that both effects can be described by a single image
formation model, wherein an intermediate layer (of dust, dirt or thin
occluders) both attenuates the incoming light and scatters stray light
towards the camera. Because of camera defocus, these artifacts are
low-frequency and either additive or multiplicative,
which gives us the power to recover the
original scene radiance pointwise. We develop a number of
physics-based methods to remove these effects from digital photographs
and videos. |
Publications
"Removing Image Artifacts Due to Dirty Camera Lenses and Thin Occluders,"
Jinwei Gu, Ravi Ramamoorthi, Peter Belhumeur, Shree Nayar,
ACM Transactions on Graphics (Proceedings of SIGGRAPH Asia),
Dec, 2009.
[PDF] [bib] [©]
|
Images
 |
|
Scenarios where an Automatic Computational Cleaning Method is Needed:
For automated imaging systems (e.g., outdoor security cameras) and some sophisticated imaging
systems (e.g., telescopes and microscopes), the image artifacts caused by dust or debris
will significantly lower the image quality, but manually cleaning the optics is
usually very expensive. Therefore, we need automatic, computational methods
to remove these artifacts from captured images and videos.
|
| |
|
|
 |
|
Image Formation Model:
The dust will both attenuate and scatter light. The attenuation is a local effect,
which makes the region darker, such as the sky. The scattering is a global effect.
The dust receives the radiance from the entire environment, including stray lights
such as the sun, and scatters. This makes some regions brighter.
The attenuation can be modeled as the product of the background scene I0(x)
and the defocused attenuation map alpha(x)*k(x). For the scattering, the dust layer
acts like a light source, and its contribution to the captured image
equals Ia(x) * k(x), where Ia(x) is the radiance caused by dust scattering.
We simplified the image formation model by approximating I_a(x) as a product of some
function of the attenuation map, and the aggregate of the outside illumination.
This assumption has been validated using experiments as below. With this assumption,
the image formation model is simplified, where a(x) and b(x) are the attenuation map
and the scattering map. These terms are determined by the camera and the dirty lens.
c is the aggregate of the outside illumination. It is a scene-dependent scalar
and it will be estimated for each captured image.
|
| |
|
|
 |
|
Validation of the Model Simplification for Artifacts caused by a Dusty Camera Lens:

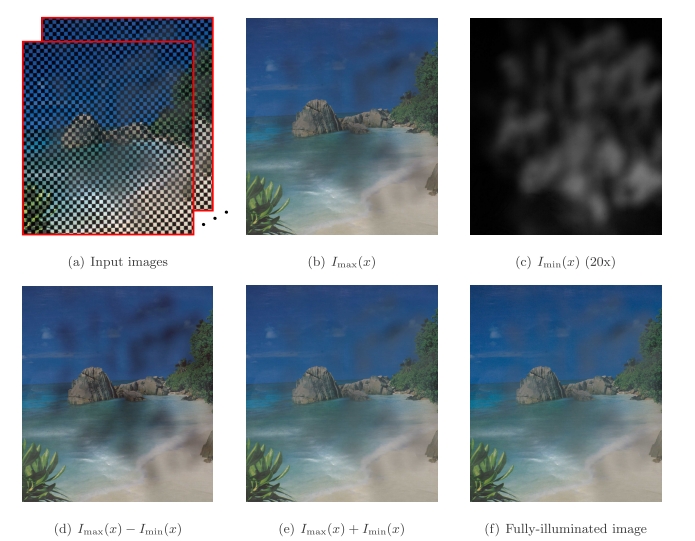

Experimental validation of model simplification. (a) A sequence of shifted checkerboard
patterns are projected on a scene. (b) The point-wise maximum of the captured
images, I_max(x), includes both the attenuation and the scattering. (c) The minimum of
the captured images (amplified 20 times for demonstration), I_min (x), directly measures the
scattering of the lens dirt. (d) The attenuation can be simply computed as I_max (x)-I_min (x).
As shown in (c), the scattering is related only to the attenuation pattern, and not the background
scene. (e) shows I_max (x) + I_min (x), and (f) is the image captured when we project
a white pattern on the scene. (e) should equal to (f) because the checkerboard patterns
turn on half the projector pixels and thus the scattering in (c) is half of the scattering in
(f) while the attenuation keeps the same. Indeed, we found (e) and (f) are closely matched
with a mean absolute percentage error 0.6%.
|
| |
|
|
 |
|
Removal of Dirty Lenses Artifacts (with Calibration) - Calibration:
Calibration of a dirty-lens camera. (a) The dirty pattern on the lens can be
measured by taking several pictures (>=2) of a stripe pattern, as shown in (b). With these
calibration images, we can estimate (c) the attenuation map a(x) and (d) the scattering
map b(x) for a dirty lens camera.
|
| |
|
|
 |
|
Removal of Dirty Lenses Artifacts (with Calibration) - Results:
Removal of the dirty-lens image artifacts with calibration. Given the
attenuation map a(x) and the scattering map b(x) from the calibration, we
can remove dirty-lens artifacts for each input image. (a) are four input
images, and (b) are the recovered images. (c) shows the insets of the input
and recovered images.
|
| |
|
|
 |
|
Removal of Dirty Lenses Artifacts from Multiple Images (No Calibration) - Results:
Estimation of the attenuation map a(x) and the scattering map b(x) from a
video taken with a dirty lens camera. (a) The input is a 5-min long video clip, consisting of
7200 frames. (b) The averaged image over all the frames. (c) The averaged image gradient
(amplified 20 times for demonstration) over all the frames. (d)-(g) show the intermediate
results of the iterative polynomial fitting where the black pixels in the images are the
outliers corresponding to the dirt regions in captured images. (h) and (i) show the
fitting results, and (j) and (k) show the estimated attenuation map a(x) and the scattering
map b(x).
|
| |
|
|
 |
|
Removal of Dirty Lenses Artifacts from Multiple Images (No Calibration) - Results:

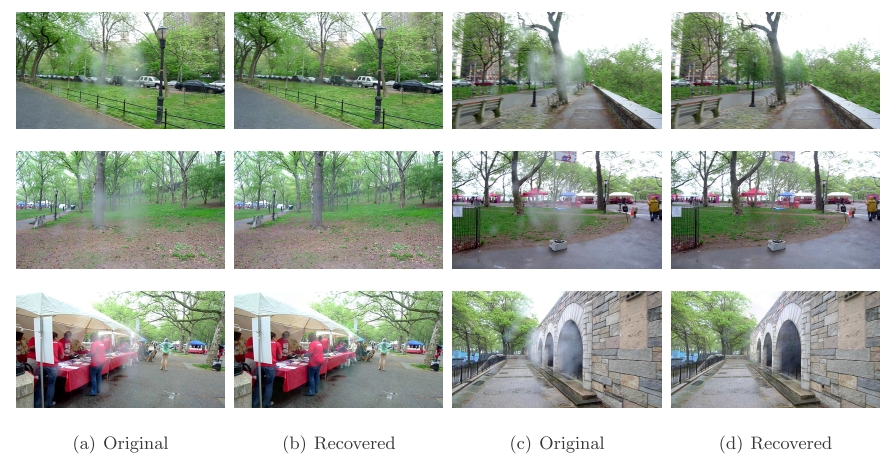

Removal of the dirty-lens image artifacts from a video without calibration.
Based on the estimated attenuation map and the scattering map, dirty-lens artifacts can
be removed for each frame. We show several examples where (a) and (c) are the original
frames, and (b) and (d) are the recovered images.
|
| |
|
|
 |
|

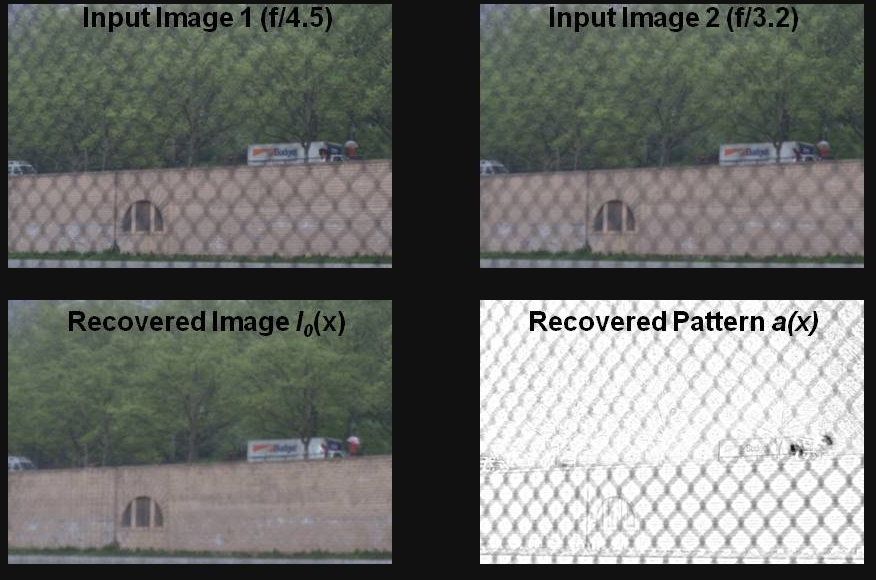

Removal of Thin Occluder Artifacts from Two Images (Known Depths):
A similar image formation model can be used to remove the thin occluder artifacts from captured images.
Here shows an example where we know roughly the point spread function, and two images with
different apertures are needed to automatically remove the artifacts.
|
| |
|
|
 |
|

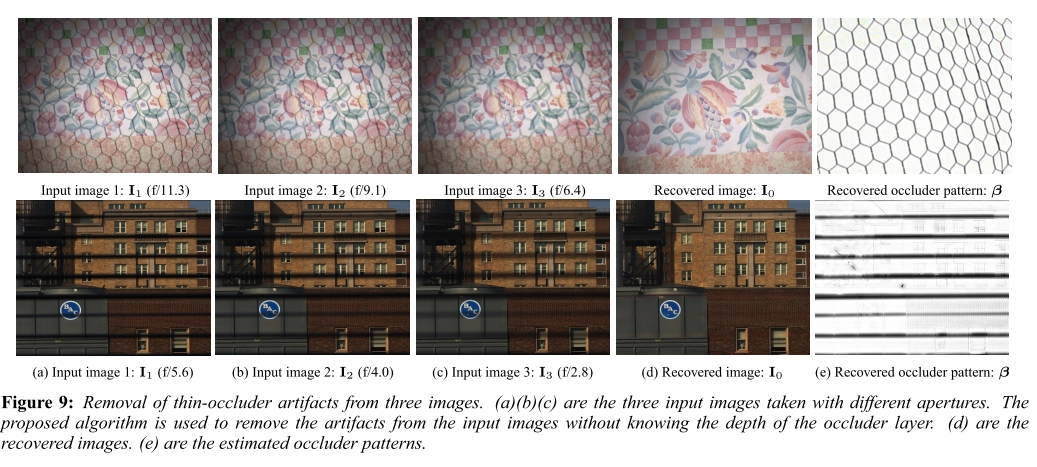

Removal of Thin Occluder Artifacts from Three Images (Unknown Depths):
If the depth of the thin occluder is unknown, we need three images to remove the artifacts, using an iterative
method.
|
| |
|
|
|
