Multiplexed Illumination for Scene Recovery
in the Presence of Global Illumination |
 | |
Global illumination effects such as inter-reflections and subsurface scattering result
in systematic, and often significant errors in scene recovery using active illumination.
Recently, it was shown that the direct and global components could be separated efficiently
for a scene illuminated with a single light source. In this project, we study the problem of
direct-global separation for multiple light sources. We derive a theoretical lower bound for
the number of required images, and propose a multiplexed illumination scheme. We analyze the
signal-to-noise ratio (SNR) characteristics of the proposed illumination multiplexing method
in the context of direct-global separation. We apply our method to several scene recovery
techniques requiring multiple light sources, including shape from shading, structured light
3D scanning, photometric stereo, and reflectance estimation. Both simulation and experimental
results show that the proposed method can accurately recover scene information with fewer
images compared to sequentially separating direct-global components for each light source.
This project was done in collaboration with Toshihiro Kobayashi of Canon Inc. |
Publications
"Multiplexed Illumination for Scene Recovery in the Presence of Global Illumination,"
J. Gu, T. Kobayashi, M. Gupta and S.K. Nayar,
IEEE International Conference on Computer Vision (ICCV),
pp.1-8, Nov, 2011.
[PDF] [bib] [©]
"Supplementary Document: Multiplexed Illumination for Scene Recovery in the Presence of Global Illumination,"
J. Gu, T. Kobayashi, M. Gupta and S.K. Nayar,
IEEE International Conference on Computer Vision (ICCV),
pp.1-4,
Nov, 2011.
[PDF] [bib] [©]
|
Images
 |
|
Scene recovery results for a V-groove in several applications:
(a) shape
from shading (one source); (b) intensity ratio (two sources); (c) phase shifting
(three sources); and (d) photometric stereo (three sources). Row 1: One of the
captured images without direct-global separation. Row 2: The separated direct
component using our method. Row 3: Recovered depth profiles. Our method
faithfully recovers scene information, while requiring fewer images than
applying the separation method [Nayar 2006] sequentially.
|
| |
|
|
 |
|

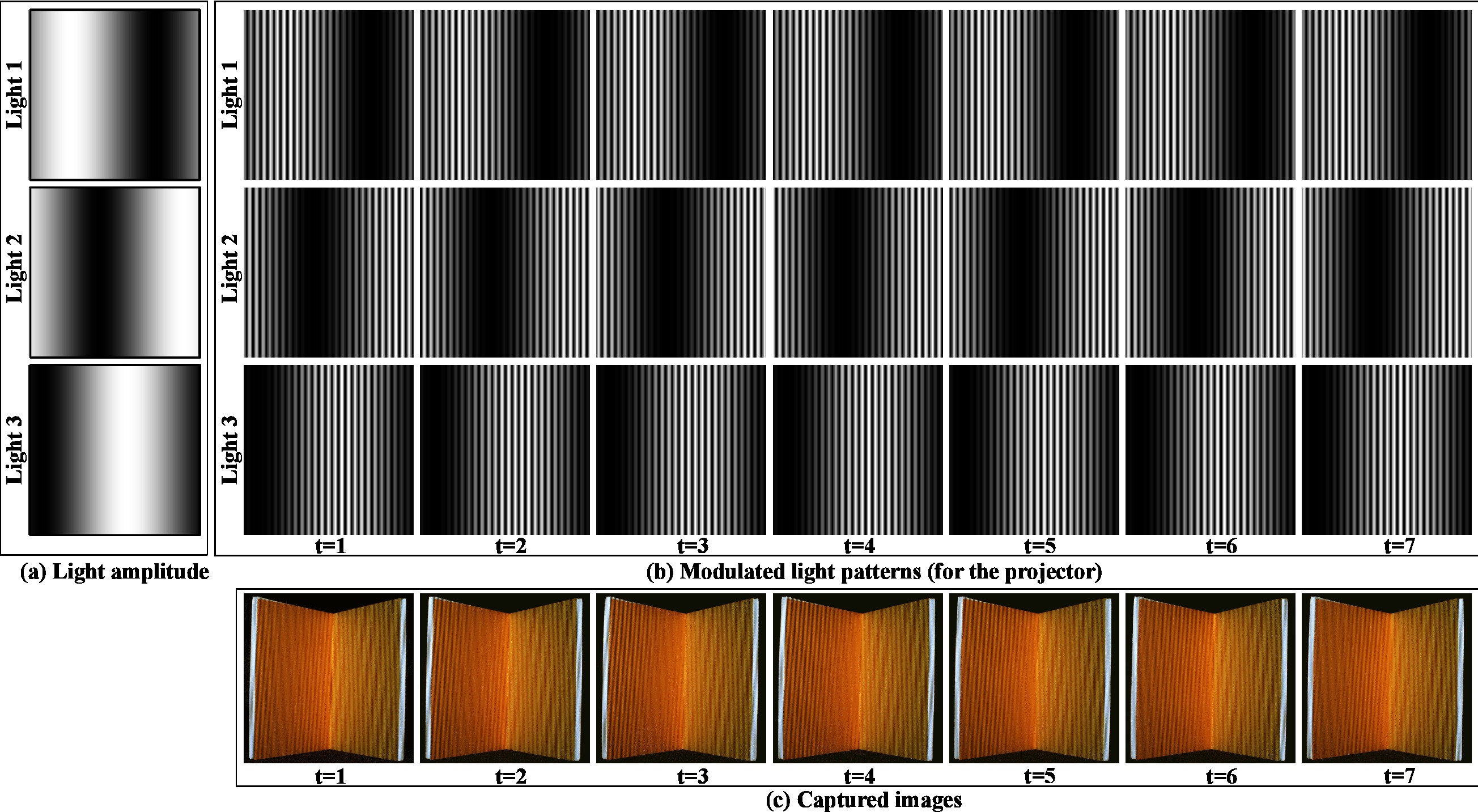

Projected light patterns and captured images for phase shifting:
(a) The
amplitudes for the three (collocated) light sources. (b) We modulate the three
light sources with high frequency sinusoids shifting over time and simultaneously
project the modulated light patterns. (c) The corresponding captured images.
|
| |
|
|
 |
|
BRDF and surface normal estimation of a shiny cake mold:
In this
example, we used N=9 lights to recover the BRDF and surface normal map
for a concave, shiny cake mold. Column 1: One of the direct components
(for no separation, it is one of the captured image). Column 2: Recovered
surface normal map (color coded). Column 3: Estimated BRDF (rendered as
a sphere under natural environment lighting). Column 4: Rendered images
with the estimated BRDF and surface normals. Column 5: Recovered depth
for the selected region (red rectangle).
|
| |
|
|
 |
|
Recovery of normals and depths of a banana using photometric stereo:
The banana skin is translucent, resulting in sub-surface scattering.
Without separating the global illumination, the mean square error in
the recovered depth is 19%. With our method, the error is 4%.
|
| |
|
|
 |
|
Depth recovery of a pop-up book using phase-shifting:
The scene exhibits
strong inter-reflections resulting in large errors in the recovered
depth. Our method removes Interreflections, thus reducing the depth
errors significantly.
|
| |
|
|
 |
|

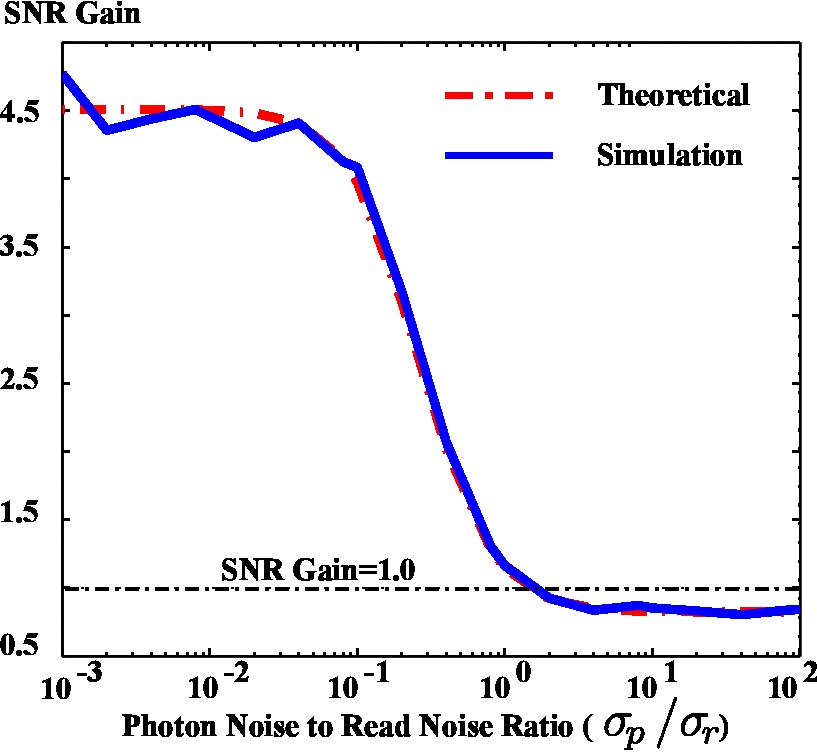

Signal-to-Noise Ratio (SNR) characteristics of the proposed method:
The
x-axis is the ratio between the standard deviation of the photon noise
(σp) and read noise (σr). The y-axis is the SNR gain of the
proposed method with respect to the sequential separation method
[Nayar 2006]. The red line is the theoretical result, and the blue
line is the simulation result (for 30 light sources). As expected,
the SNR gain is √(2N/3) if read noise dominates, and it reduces
as the photon noise increases, approaching the asymptotic value of 0.83.
|
| |
|
|
|
Video
If you are having trouble viewing these .mp4 videos in your browser, please save them to your computer first (by right-clicking and choosing "Save Target As..."), and then open them.
 |
|
ICCV 2011 Supplementary Video:
This video include more experimental results. (With narration, 20MB)
|
| |
|
|
|
